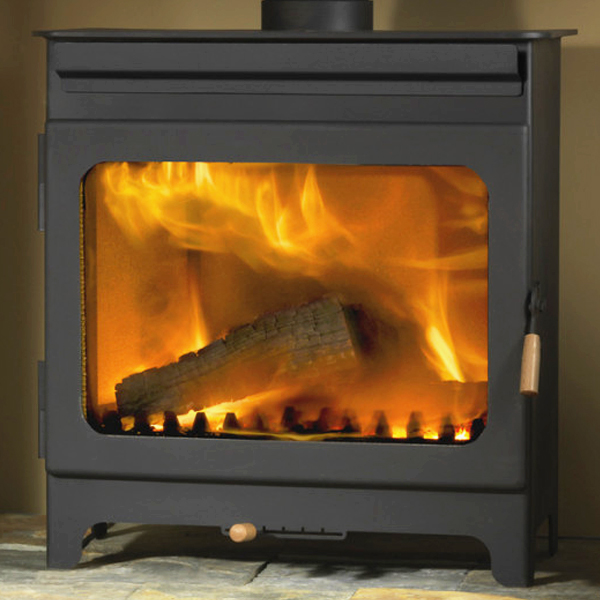

A powerhouse wood burning stove well suited to those who need the maximum heat from their heating appliance. The Burlery Wakerley 9112 is capable of providing up to a mighty 18.3kW of glorious heat whilst being an extremely high efficient stove with a rating of 84.1%! A dedicated wood burning appliance with huge glass viewing window for the ultimate view of the dancing flames within.

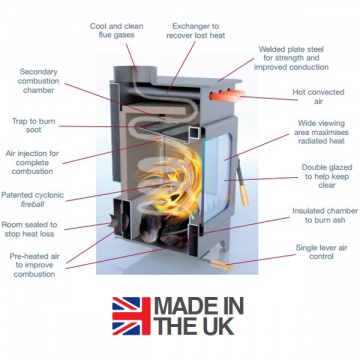

Part of the 'Fireball' range of stoves from Burley, the Wakerley 9112 exceeds the required levels of emissions for the upcoming EcoDesign directive. In each Fireball stove there is an advanced heat exchanger. This heat exchanger scrubs the energy from the hot gasses before they go up the chimney and puts more warmth into your home. The combination of efficient burning and heat recovery means that their wood burners will deliver more warmth and use less fuel than any comparable stove you may currently have.
As two of the main reasons for buying a stove are to be mesmerised by the flame picture and to keep you warm and cosy, Burley wanted the largest possible window. Due to its size and the intensity of heat generated, the screen has to withstand massive temperature fluctuations and thermal shock so it is actually ceramic and not conventional glass. Ceramic glass is very expensive, despite this your stove is double glazed which helps keep it clean and promotes secondary combustion.
Burley wood burning stoves are constructed in the UK using heavy gauge steel. The plate steel sections are 5mm and 8mm thick and are welded by robots. Hand-crafted is lovely when it comes to knitwear, but in a stove there is no comparison to welding by robots. Not only are the welds applied in exactly the right place and in exactly the right thickness, but the steel sections are actually melted and fused together to make a virtually indestructible construction.
The particulates are the pieces of fine dust and soot which escape combustion and pass up the chimney, this is what air pollution in cities usually measures and focuses on. The intensity of Burley’s Fireball combustion ensures almost all particulates are burnt before they leave the combustion chamber, any which do escape the fierce heat then have to pass though Burley’s unique soot trap, this is a red hot stainless steel mesh on which particulates spontaneously combust on contact releasing even more energy. Any which survive the soot trap still have to make it through the catalytic converter where they are burnt through oxidation.
The combined effect of all these measures results in particulates as low as 0.1 grams per hour, just 1/30th of what is allowed for EcoDesign. Burning one single open fire produces more particulates than 300 Burley stoves! Buy a Burley Fireball and your neighbours will love you for it!

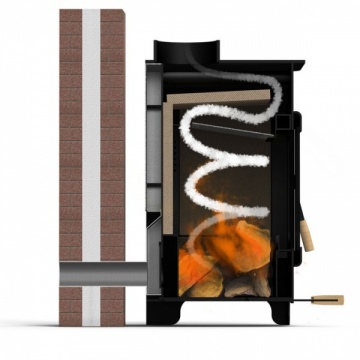

Most stoves draw their air from the room, air which you have already paid to heat. This warm air is replaced by cold air creeping around doors and windows. An open flue will suck all the air from your room once every hour, 24 hours a day. The Icarus however can very easily be room sealed so the air is drawn from outside, this means all the lovely warmth drifts outwards, not only warming your room, but also your entire home. It is Burley’s environmental policy to only make stoves which can be room sealed.
An optional Outside Air Kit can also be purchased as a Standard Room Seal Kit or Angled Room Seal Kit. The Standard Kit connects directly from the rear of the fire to the back wall. The Angled Kit exits at 900 from the rear of the fire. This can then be connected to standard ducts (available from builders’ merchants), to create a path to an outside wall. A maximum of five 900 angles may be used.
Included free with the Wakerley 9112 is Burley's 'Thank You' pack which typically contains:
- Spanner to attach and adjust the tension of the air control lever
- Coaster to protect the top of your stove
- Moisture Meter to ensure your wood is dry
- Stove Paint in case you prefer black handles or ever need to touch up any paint work
- Heat Resistant Glove
- Scoop for removing ash
- Allen Key should you wish to adjust the door handle
- A Mug to enjoy a cup of tea whilst admiring the fantastic flame picture
The contents of the kits vary from model to model, so not all the items listed or shown above may be included with your stove.
(Manufacturers instructions are offered as a guide only
and may not always be the latest version)
(Burley Wood Burning Stove brochure 2020)
Key features of the Burley Wakerley 9112 Wood Burning Stove can be found below.
|Brand ||Burley |
|Model || |
|Country of Manufacture ||United Kingdom |
|Heater Type ||Wood Burning only |
|Nominal Heat Output ||12.0kW |
|Maximum Heat Output ||18.3kW |
|Efficiency (Net) ||84.1% |
|Dust (mg/m3) ||14 |
|Particulates (gr/h) ||0.6 |
|Carbon Monoxide ||0.06 |
|Nitrous Oxides ||85 |
|Hydrocarbons ||24 |
|DEFRA Approved ||No |
|EcoDesign Compliant ||Yes |
|Airwash System ||Yes |
|Maximum Log Length ||580mm (22¾") |
|Weight ||130kg |
|Air Vent requirement ||7850mm sq. min 50mm diameter |
(Air Vent not required if stove is room sealed)
|Minimum flue draught mm H2O ||0.5mm |
|Flue Gas temperature ||237ºC |
|Spigot temp ||274ºC |
|Flue Size (top exit) ||150mm (6") |
|Minimum chimney diameter ||150mm (6") |
|Minimum distance to combustible materials. |
All other distance as per Building regulations
Part J or HETAS recommendations
|20cm behind (8") |
45cm at side (17¾")
45cm to top
|Warranty ||5 Years |

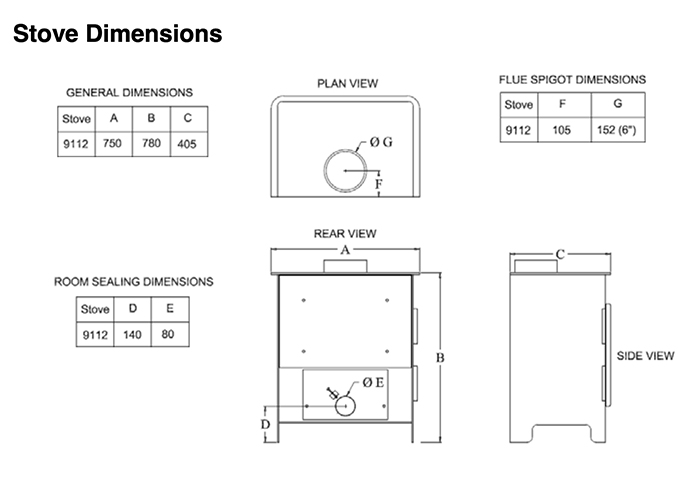

The dimensions (width, height, depth) of the Burley Wakerley 9112 Wood Burning Stove are listed here.
Optional Wood Store Base Plinth 183mm high
