Burley Carlby 9307-C Catalytic Converter Wood Burning Stove

Burley Carlby 9307-C Catalytic Converter Wood Burning Stove
Burley Carlby 9307-C Catalytic Converter Wood Burning StoveBurley Carlby 9307-C Catalytic Converter Wood Burning StoveBurley Carlby 9307-C Catalytic Converter Wood Burning StoveBurley Carlby 9307-C Catalytic Converter Wood Burning StoveBurley Carlby 9307-C Catalytic Converter Wood Burning Stove

Modern, tall proportions with a towering portrait viewing window providing the ultimate view of the flames within. The Burley Carlby 9307-C boasts the very latest catalytic technology helping the stove to achieve a powerful 7kW nominal heat output and impressive efficiency of 84.7%.

Burley
Showroom Exclusive
£1,300.00
(VAT incl.)

Burley Wood Burning Stoves Made in the UKThe extended height of the Carlby 9307-C provides a tall glass door, perfect for showing the fireball effect, enveloping the entire firebox. A breakthrough in the wood burning stove industry, this cutting-edge appliance features catalytic technology for improved performance and energy efficiency.

The aim of a catalytic converter in a wood burning stove is to convert as much as possible of the pollutants into either carbon dioxide or water. The catalytic converter also releases heat energy as it oxidises the smoke, so it improves efficiency and reduces pollution at the same time!

This state-of-the-art wood burning stove is ideal for larger rooms or open-plan living areas as it boasts an nominal heat output rating of 7kW and capable of generating up to 8.2kW when run on maximum. The catalytic converter technology help the Burley Carlby 9307-C achieve a superb efficiency rating of up to 84.7%.

The Carlby 9307-C is from Burley's 'Firecube' range of features an advanced heat exchanger. This heat exchanger scrubs the energy from the hot gasses before they go up the chimney and puts more warmth into your home.

The combination of efficient burning and heat recovery means that Burley are the ONLY company who guarantee that their wood burners will deliver more warmth and use less fuel than any comparable stove you may currently have. Burley are proud to not only manufacture all of their products in their factory in Oakham, but to also buy materials as locally and environmentally responsibly as they can.

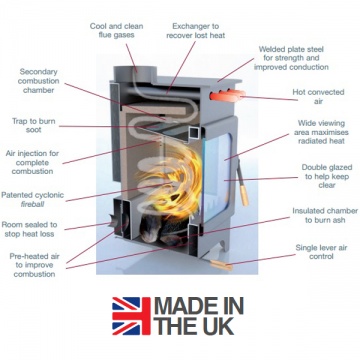

Burley stoves are the cleanest least polluting stoves in the world. This is achieved through a three step combustion process. Firstly, the intensity of Burley's Fireball combustion chamber ensures the majority of particulates are burnt before leaving the combustion chamber. After this an remaining particulates have to pass through Burley's unique soot trap.

This is a red hot stainless steel mesh on which particulates spontaneously combust on contact releasing more energy in the process. Finally, particulates that survive the previous steps still have to make it through the catalytic converter where they are burnt through oxidation. The combination of these three measures results in particulate emissions as low as 0.1 grams per hour. For comparison burning one single open fire produces more particulate emissions than 300 Burley stoves!

Simple and modern in design, the Carlby 9307-C is constructed from steel. The plate steel sections are 5mm and 8mm thick and are welded by robots with the welds applied in exactly the right place and in exactly the right thickness resulting in the steel sections being melted and fused together to make a virtually indestructible construction. Weighing in at a mighty 105kg, you can be assured that this cutting-edge stove is built to last giving years of dependable service.

Not only is the Burley Carlby 9307-C a DEFRA exempt stove and approved for burning wood in smokeless areas, it has passed the tests for the upcoming EcoDesign directive. Ecodesign Compliant stoves have been third party independently verified as meeting the maximum emission limits for particulate matter (PM), organic gaseous compounds (OGC), carbon monoxide (CO), nitrogen oxides (NOx), as well as the minimum limits for seasonal efficiency.

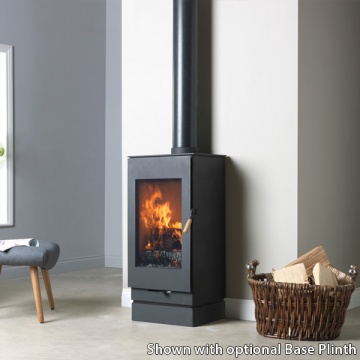

Finished in classic matt black high temperature paint with attractive wood door handle, the dedicated wood burning Burley Carlby 9307-C and is available with an extended base plinth. This is the perfect accompaniment for stand alone installations where height needs to be emphasised. This item is a separate component and fits to the standard height stove.

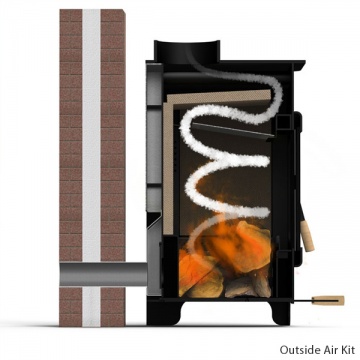

An optional Outside Air Kit can also be purchased as a Standard Room Seal Kit or Angled Room Seal Kit. The Standard Kit connects directly from the rear of the fire to the back wall. The Angled Kit exits at 900 from the rear of the fire. This can then be connected to standard ducts (available from builders’ merchants), to create a path to an outside wall. A maximum of five 900 angles may be used.

Burley Thank You Pack for StovesIncluded free with the Carlby 9307-C is Burley's 'Thank You' pack which typically contains:

  • Spanner to attach and adjust the tension of the air control lever
  • Coaster to protect the top of your stove
  • Moisture Meter to ensure your wood is dry
  • Glass Cleaner
  • Stove Paint in case you prefer black handles or ever need to touch up any paint work
  • Heat Resistant Glove
  • Scoop for removing ash
  • Allen Key should you wish to adjust the door handle
  • A Mug to enjoy a cup of tea whilst admiring the fantastic flame picture

The contents of the kits vary from model to model, so not all the items listed or shown above may be included with your stove.


Download Instructions
(Manufacturers instructions are offered as a guide only
and may not always be the latest version)
Burley Wood Burning Stoves Brochure
Download Brochure
(Burley Wood Burning Stove brochure 2020)



ove
Brand Burley
Model

Carlby 9307-C

Country of Manufacture United Kingdom
Heater Type Wood Burning Stove
Nominal Heat Output 7.0kW
Maximum Heat Output 8.2kW
Efficiency (Net) 84.7%
Dust (mg/m3) 18
Particulates (gr/h) 0.35
Carbon Monoxide 0.08
Nitrous Oxides 95
Hydrocarbons 67
DEFRA Approved Yes
EcoDesign Compliant Yes
Airwash System Yes
CO concentration @ 13% Oxygen 0.11%
Maximum Log Length 400mm (15¾")
Weight 105kg
Air Vent requirement 38.5cm² sq. for houses built after 2010
11cm² sq. for houses built before 2010
(Air Vent not required if stove is room sealed)
Minimum flue draught mm H2O 0.5mm
Flue Gas temperature 261ºC
Spigot temp Above 200ºC
Flue Size (top exit) 150mm (6")
Minimum chimney diameter 150mm (6")
Minimum distance to combustible materials.
All other distance as per Building regulations
Part J or HETAS recommendations
40cm behind (16")
50cm at side (20")
35cm to top (14")
Warranty 5 Years

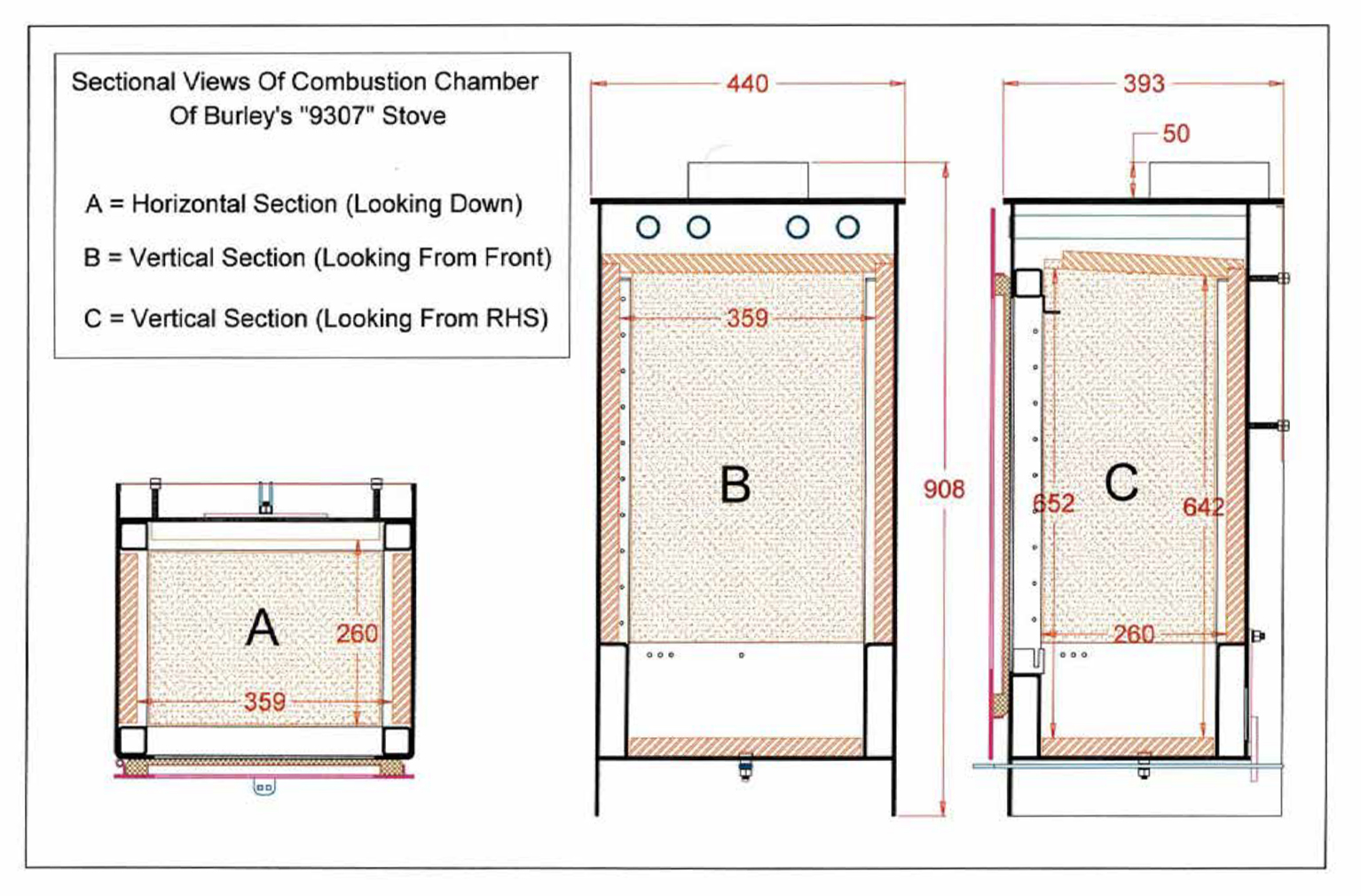

Burley Carlby 9307-C Dimensions

Optional Base Plinth 114mm high

Due to the size and weight, all Burley Wood Burning Stoves will be delivered to you on a palletised delivery service. All pallet deliveries are kerbside/front door delivery only, so please arrange adequate means to take your order into your home. Under normal circumstances this may take 2 people.

Current delivery times for the Burley Carlby 9307-C is approximately 7-10 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
