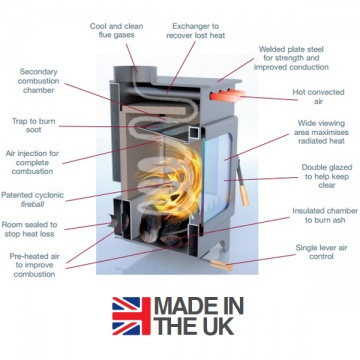

The 9305-C model of Burley’s hugely popular Bradgate stove incorporates a catalytic converter that aids complete combustion, turning carbon monoxide into carbon dioxide, releasing more energy in the process, therefore the stove with catalytic converter will generally have lower CO and higher efficiency than the stove without.
Burley’s research and design has ensured the catalytic converters are working in the perfect temperature band, therefore with normal use they are rated for over 10,000 hours use. Unlike many other catalytic stoves, with average use Burley’s cat’s will never need replacing.
With a market leading energy efficiency rating of 90.4%, you can be assured that you are benefiting from the maximum heat from fuel burnt. Nominal heat output is rated at 5kW so it's ideal for standard sized rooms and in most instances, additional ventilation (air vent) is not required. When running on maximum and fully loaded, the stove can achieve a heat output of 6.4kW.

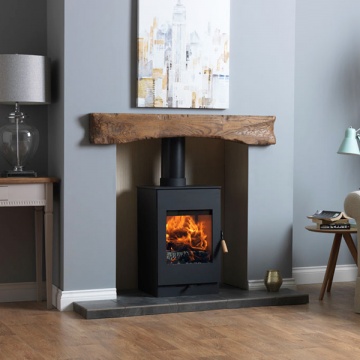

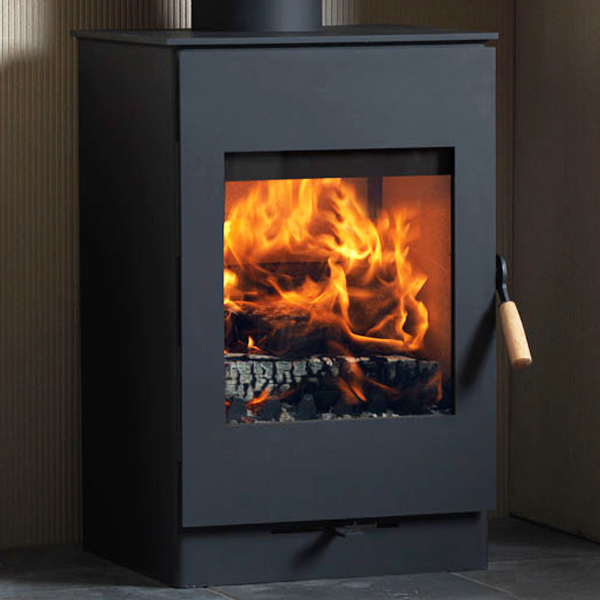

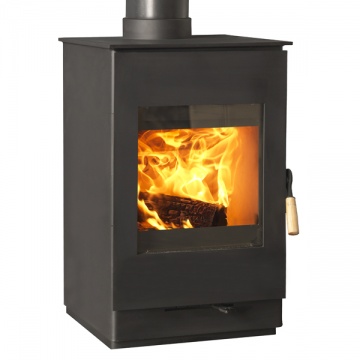

This stylish wood burning stove is from Burley's range of 'Firecube' models which combine the very latest innovations resulting in excellent energy efficiency and performance. The Bradgate 9305-C will appeal to those looking to heat standard sized rooms whilst enjoying the charm and ambience of a wonderful view of the flames through the glass viewing window.

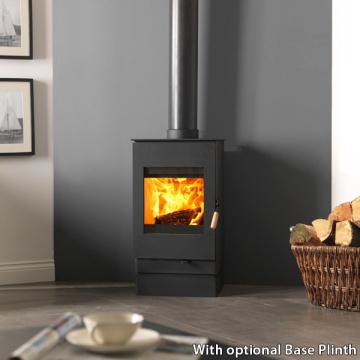

The modern, portrait scale of the Bradgate 9305-C can be increased further with the addition of an optional Base Plinth which sits at the base of the appliance lifting the height by an extra 114mm (4½"). Made in Burley's headquarters in Oakham, East Midlands using locally sourced materials whilst being as environmentally responsibly as they can.
Simple and modern in design, the Bradgate 9305-C is constructed from steel. The plate steel sections are 5mm and 8mm thick and are welded by robots with the welds applied in exactly the right place and in exactly the right thickness resulting in the steel sections being melted and fused together to make a virtually indestructible construction. Weighing in at 95kg, you can be assured that this cutting-edge stove is built to last giving years of dependable service.
Not only is the Bradgate 9305-C a DEFRA exempt stove and approved for burning wood in smokeless areas, it has passed the tests for the upcoming EcoDesign directive. Ecodesign Compliant stoves have been third party independently verified as meeting the maximum emission limits for particulate matter (PM), organic gaseous compounds (OGC), carbon monoxide (CO), nitrogen oxides (NOx), as well as the minimum limits for seasonal efficiency.
For homes built before 2010, an Air Vent is not normally required when fitting the Bradgate. For homes built after 2010, an optional Outside Air Kit can also be purchased as a Standard Room Seal Kit or Angled Room Seal Kit. The Standard Kit connects directly from the rear of the fire to the back wall. The Angled Kit exits at 900 from the rear of the fire. This can then be connected to standard ducts (available from builders’ merchants), to create a path to an outside wall. A maximum of five 900 angles may be used.
Included free with the Bradgate 9305-C is Burley's 'Thank You' pack which typically contains:
- Spanner to attach and adjust the tension of the air control lever
- Coaster to protect the top of your stove
- Moisture Meter to ensure your wood is dry
- Glass Cleaner
- Stove Paint in case you prefer black handles or ever need to touch up any paint work
- Heat Resistant Glove
- Scoop for removing ash
- Allen Key should you wish to adjust the door handle
- A Mug to enjoy a cup of tea whilst admiring the fantastic flame picture
The contents of the kits vary from model to model, so not all the items listed or shown above may be included with your stove.
(Manufacturers instructions are offered as a guide only
and may not always be the latest version)
(Burley Wood Burning Stove brochure 2020)
