This stylish wood burning stove is from Burley's range of 'Firecube' models which combine the very latest innovations resulting in excellent energy efficiency and performance. The Bradgate 9305 will appeal to those looking to heat standard sized rooms whilst enjoying the charm and ambience of a wonderful view of the flames through the glass viewing window.

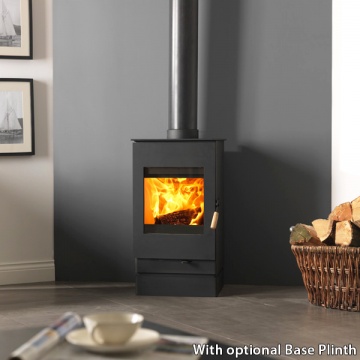

The modern, portrait scale of the Bradgate 9305 can be increased further with the addition of an optional Base Plinth which sits at the base of the appliance lifting the height by an extra 114mm (4½"). Made in Burley's headquarters in Oakham, East Midlands using locally sourced materials whilst being as environmentally responsibly as they can.
Simple and modern in design, the Bradgate 9305 is constructed from steel. The plate steel sections are 5mm and 8mm thick and are welded by robots with the welds applied in exactly the right place and in exactly the right thickness resulting in the steel sections being melted and fused together to make a virtually indestructible construction. Weighing in at 95kg, you can be assured that this cutting-edge stove is built to last giving years of dependable service.
Not only is the Bradgate 9305 a DEFRA exempt stove and approved for burning wood in smokeless areas, it has passed the tests for the upcoming EcoDesign directive. Ecodesign Compliant stoves have been third party independently verified as meeting the maximum emission limits for particulate matter (PM), organic gaseous compounds (OGC), carbon monoxide (CO), nitrogen oxides (NOx), as well as the minimum limits for seasonal efficiency.
For homes built before 2010, an Air Vent is not normally required when fitting the Bradgate. For homes built after 2010, an optional Outside Air Kit can also be purchased as a Standard Room Seal Kit or Angled Room Seal Kit. The Standard Kit connects directly from the rear of the fire to the back wall. The Angled Kit exits at 900 from the rear of the fire. This can then be connected to standard ducts (available from builders’ merchants), to create a path to an outside wall. A maximum of five 900 angles may be used.
Included free with the Bradgate 9305 is Burley's 'Thank You' pack which typically contains:
- Spanner to attach and adjust the tension of the air control lever
- Coaster to protect the top of your stove
- Moisture Meter to ensure your wood is dry
- Stove Paint in case you prefer black handles or ever need to touch up any paint work
- Heat Resistant Glove
- Scoop for removing ash
- Allen Key should you wish to adjust the door handle
- A Mug to enjoy a cup of tea whilst admiring the fantastic flame picture
The contents of the kits vary from model to model, so not all the items listed or shown above may be included with your stove.
(Manufacturers instructions are offered as a guide only
and may not always be the latest version)
(Burley Wood Burning Stove brochure 2020)
Key features of the Burley Bradgate 9305 Wood Burning Stove can be found below.
|Brand ||Burley |
|Model || |
|Country of Manufacture ||United Kingdom |
|Heater Type ||Wood Burning Stove |
|Nominal Heat Output ||5.0kW |
|Maximum Heat Output ||6.4kW |
|Efficiency (Net) ||82.9% |
|Dust (mg/m3) ||11 |
|Particulates (gr/h) ||0.125 |
|Carbon Monoxide ||0.08 |
|Nitrous Oxides ||104 |
|Hydrocarbons ||33 |
|DEFRA Approved ||Yes |
|EcoDesign Compliant ||Yes |
|Airwash System ||Yes |
|CO concentration @ 13% Oxygen ||0.12% |
|Maximum Log Length ||310mm (12¼") |
|Weight ||95kg |
|Air Vent requirement ||550mm sq. min in houses built after 2010, otherwise not required |
(Air Vent not required if stove is room sealed)
|Minimum flue draught mm H2O ||0.5mm |
|Flue Gas temperature ||122ºC |
|Spigot temp ||241ºC |
|Flue Size (top exit) ||150mm (6") |
|Minimum chimney diameter ||150mm (6") |
|Minimum distance to combustible materials. |
All other distance as per Building regulations
Part J or HETAS recommendations
|20cm behind (8") |
35cm at side (14")
35cm to top
|Warranty ||5 Years |

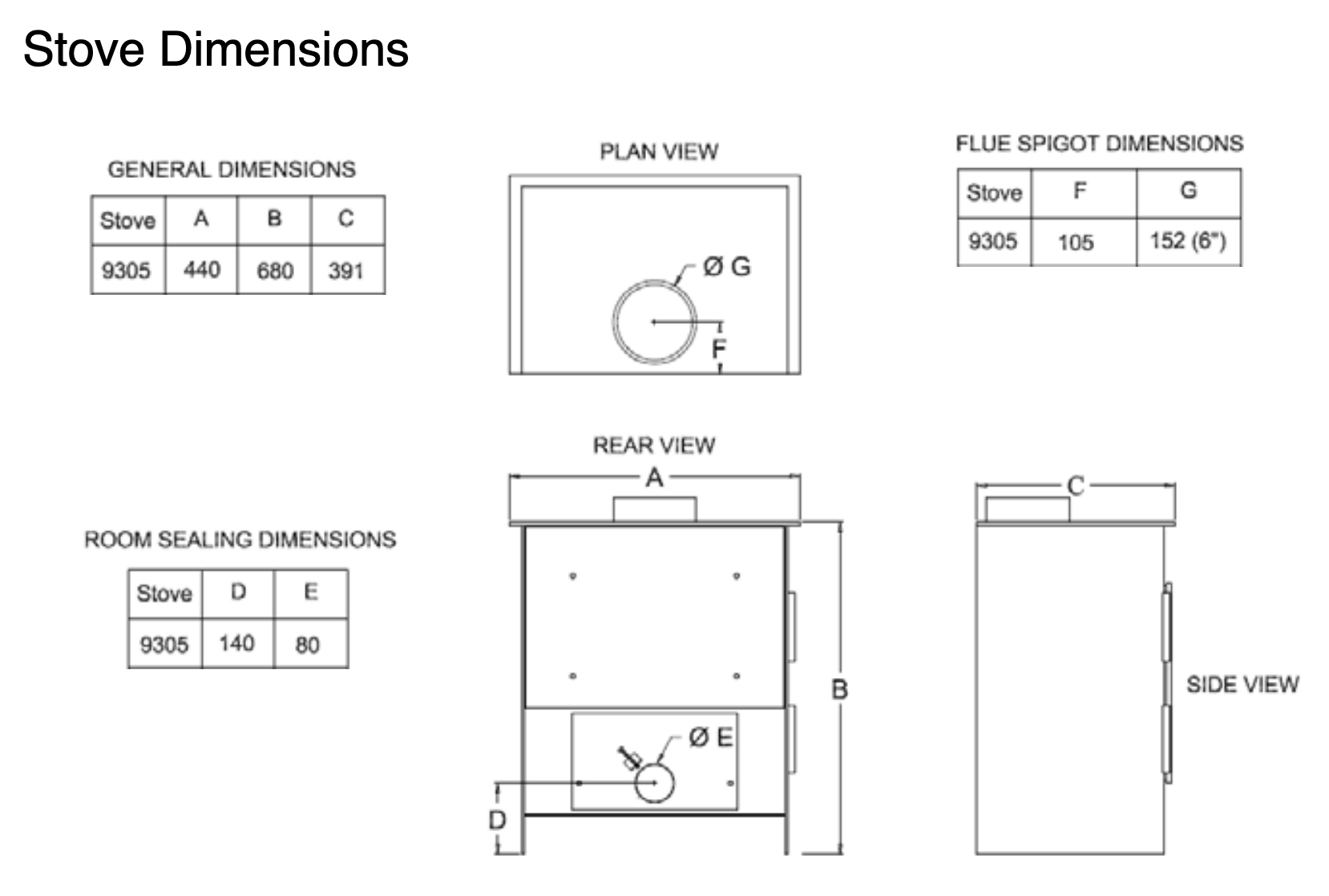

The dimensions (width, height, depth) of the Burley Bradgate 9305 Wood Burning Stove are listed here.
Optional Base Plinth 114mm high
Please note: Due to rising freight charges, we are now being forced to charge extra for delivery to Highland postcodes.
Due to the size and weight, all Burley Wood Burning Stoves will be delivered to you on a palletised delivery service. All pallet deliveries are kerbside/front door delivery only, so please arrange adequate means to take your order into your home. Under normal circumstances this may take 2 people.
Current delivery times for the Burley Bradgate 9305 is approximately 7-10 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
