Burley Bosworth 9312 Wood Burning Stove

Burley Bosworth 9312 Wood Burning Stove
Burley Bosworth 9312 Wood Burning StoveBurley Bosworth 9312 Wood Burning StoveBurley Bosworth 9312 Wood Burning Stove

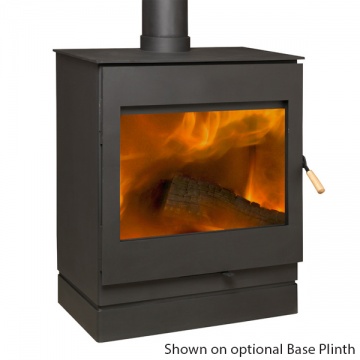

If you require extra heat to provide warmth in larger rooms or open-plan spaces, the Burley Bosworth 9312 is a EcoDesign ready wood burning stove boasting a nominal heat output of 12kW and a mammoth 18.3kW maximum output! Available with optional Base Plinth which raises height by 114mm.

Burley
Showroom Exclusive
£1,550.00
(VAT incl.)

Burley Wood Burning Stoves Made in the UKPowerful enough to provide an abundance of heat for large rooms, the Bosworth 9312 is the largest model in Burley's renown range of highly advanced wood burning stoves. On maximum setting, this powerhouse can achieve a remarkable 18.3kW heat output which will guarantee you'll be lovely and warm even on the coldest of winter evenings!

The Burley Bosworth utilises the latest technology combining efficiency and performance in a stylish and strong steel body with huge glass viewing window. Due to its large size and the intensity of heat generated, the glass screen has to withstand massive temperature fluctuations and thermal shock so it is actually ceramic and not conventional glass. Ceramic glass is very expensive, despite this the Bosworth stove is double glazed which helps keep it clean and promotes secondary combustion.

The Bosworth 9312 is from Burley's 'Firecube' range of features an advanced heat exchanger. This heat exchanger scrubs the energy from the hot gasses before they go up the chimney and puts more warmth into your home.

The combination of efficient burning and heat recovery means that Burley are the ONLY company who guarantee that their wood burners will deliver more warmth and use less fuel than any comparable stove you may currently have. Burley are proud to not only manufacture all of their products in their factory in Oakham, but to also buy materials as locally and environmentally responsibly as they can.

Simple and modern in design, the Bosworth 9312 is constructed from steel. The plate steel sections are 5mm and 8mm thick and are welded by robots with the welds applied in exactly the right place and in exactly the right thickness resulting in the steel sections being melted and fused together to make a virtually indestructible construction. Weighing in at a mighty 130kg, you can be assured that this cutting-edge stove is built to last giving years of dependable service.

The Burley Bosworth 9312 has passed the tests for the upcoming EcoDesign directive. Ecodesign Compliant stoves have been third party independently verified as meeting the maximum emission limits for particulate matter (PM), organic gaseous compounds (OGC), carbon monoxide (CO), nitrogen oxides (NOx), as well as the minimum limits for seasonal efficiency. The Bosworth is not DEFRA approved and therefore not suitable for use in smoke controlled areas.

Finished in classic matt black high temperature paint with attractive wood door handle, the dedicated wood burning Bosworth 9312 and is available with an extended base plinth. This is the perfect accompaniment for stand alone installations where height needs to be emphasised. This item is a separate component and fits to the standard height stove.

An optional Outside Air Kit can also be purchased as a Standard Room Seal Kit or Angled Room Seal Kit. The Standard Kit connects directly from the rear of the fire to the back wall. The Angled Kit exits at 900 from the rear of the fire. This can then be connected to standard ducts (available from builders’ merchants), to create a path to an outside wall. A maximum of five 900 angles may be used.

Burley Thank You Pack for StovesIncluded free with the Bosworth 9312 is Burley's 'Thank You' pack which typically contains:

  • Spanner to attach and adjust the tension of the air control lever
  • Coaster to protect the top of your stove
  • Moisture Meter to ensure your wood is dry
  • Glass Cleaner
  • Stove Paint in case you prefer black handles or ever need to touch up any paint work
  • Heat Resistant Glove
  • Scoop for removing ash
  • Allen Key should you wish to adjust the door handle
  • A Mug to enjoy a cup of tea whilst admiring the fantastic flame picture

The contents of the kits vary from model to model, so not all the items listed or shown above may be included with your stove.


Download Instructions
(Manufacturers instructions are offered as a guide only
and may not always be the latest version)
Burley Wood Burning Stoves Brochure
Download Brochure
(Burley Wood Burning Stove brochure 2020)



Brand Burley
Model

Bosworth 9312

Country of Manufacture United Kingdom
Heater Type Wood Burning Stove
Nominal Heat Output 12.0kW
Maximum Heat Output 18.3kW
Efficiency (Net) 84.1%
Dust (mg/m3) 14
Particulates (gr/h) 0.6
Carbon Monoxide 0.06
Nitrous Oxides 85
Hydrocarbons 24
DEFRA Approved No
EcoDesign Compliant Yes
Airwash System Yes
CO concentration @ 13% Oxygen 0.06%
Maximum Log Length 580mm (22¾")
Weight 130kg
Air Vent requirement 7,850mm sq. min 100mm diameter
(Air Vent not required if stove is room sealed)
Minimum flue draught mm H2O 0.5mm
Flue Gas temperature 237ºC
Spigot temp 316ºC
Flue Size (top exit) 150mm (6")
Minimum chimney diameter 150mm (6")
Minimum distance to combustible materials.
All other distance as per Building regulations
Part J or HETAS recommendations
20cm behind (8")
45cm at side (18")
45cm to top
Warranty 5 Years

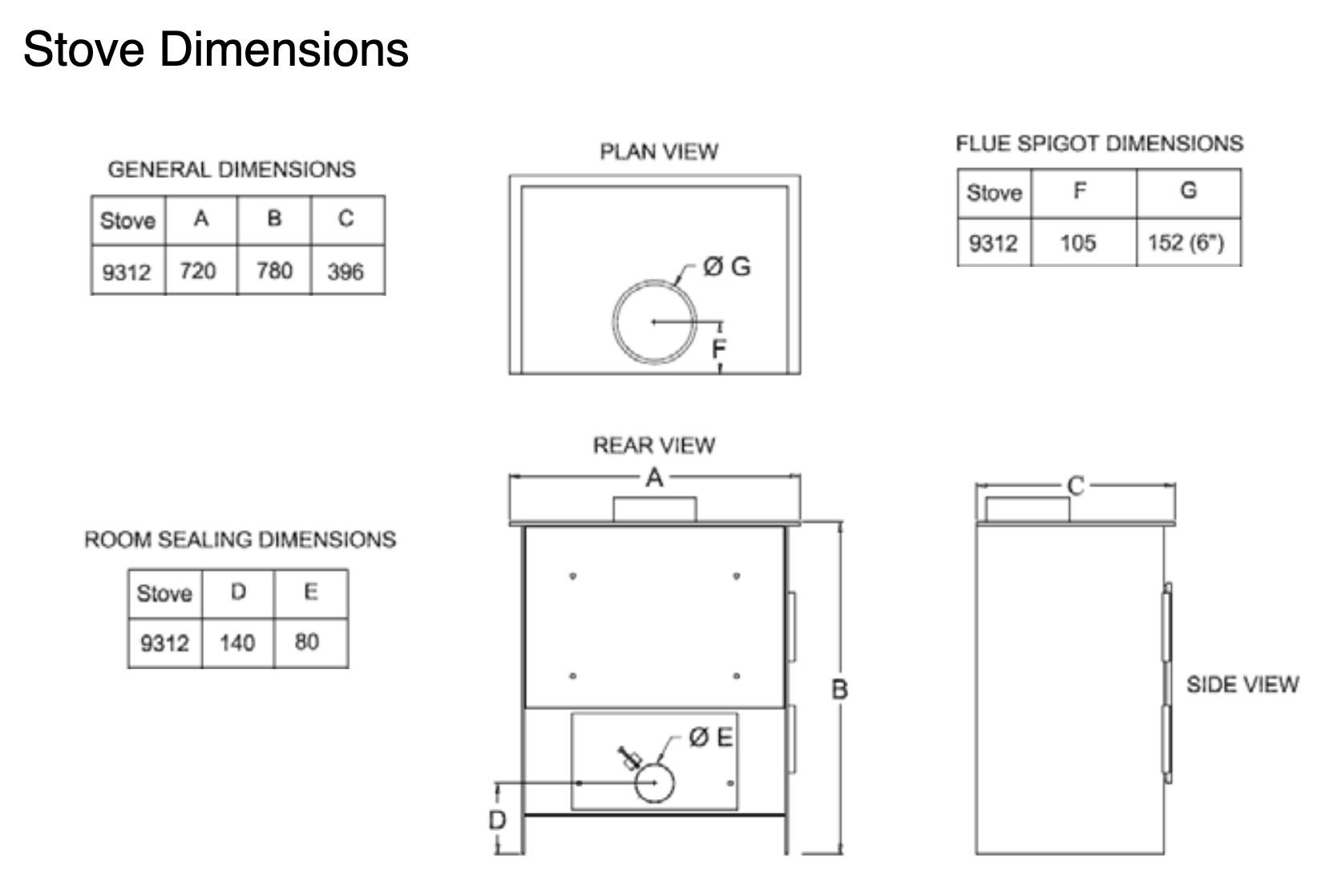

Burley Bosworth 9312 Dimensions

Optional Base Plinth 114mm high

Due to the size and weight, all Burley Wood Burning Stoves will be delivered to you on a palletised delivery service. All pallet deliveries are kerbside/front door delivery only, so please arrange adequate means to take your order into your home. Under normal circumstances this may take 2 people.

Current delivery times for the Burley Bosworth 9312 is approximately 7-10 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
