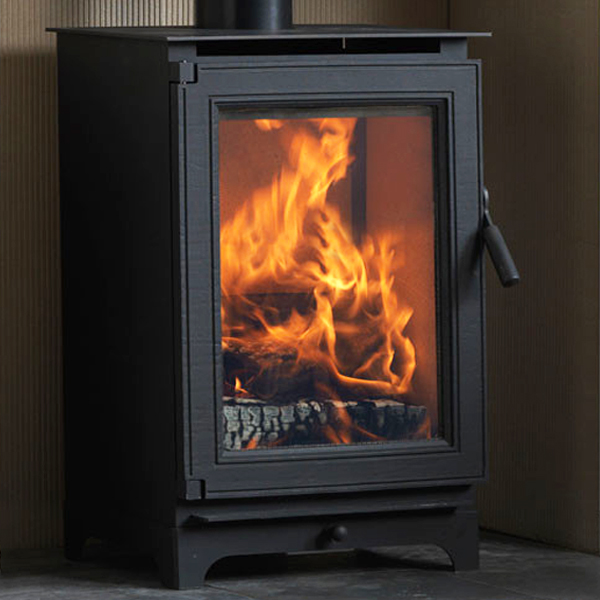

The Burley Icarus wood burning stove combines the most beautiful flame picture with clean burn technology and finest British engineering. Sit back in your favourite chair with a cup of tea and feel the stresses of the day melt away in front of the relaxing flames and warmth radiating through the full-length cathedral window.
2022 approved and exceeding the requirements of EcoDesign, reinforced by Burley’s environmental policies, the Icarus 5 9605 assures you that you have made a green, clean burning and fuel-efficient choice. Made with pride in the UK, the Icarus has a nominal heat output of 5kW making it a perfect choice for standard sized rooms.
Cut by laser, formed by computer and welded by robot, the Icarus delivers technical precision as standard. the 5mm plate steel sections are so perfectly seam welded that they are actually melted and fused together to make one solid piece. Burley endeavour to buy British steel, the castings are made in a British foundry, 100% of the fabrication is made in their factory in Oakham, even the beech wooden handle is turned in Devon.

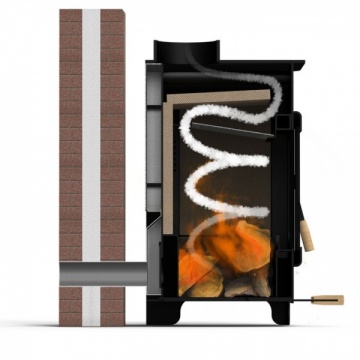

Most stoves draw their air from the room, air which you have already paid to heat. This warm air is replaced by cold air creeping around doors and windows. An open flue will suck all the air from your room once every hour, 24 hours a day. The Icarus however can very easily be room sealed so the air is drawn from outside, this means all the lovely warmth drifts outwards, not only warming your room, but also your entire home. It is Burley’s environmental policy to only make stoves which can be room sealed.
Included free with the Icarus 9605 is Burley's 'Thank You' pack which typically contains:
- Spanner to attach and adjust the tension of the air control lever
- Coaster to protect the top of your stove
- Moisture Meter to ensure your wood is dry
- Stove Paint in case you prefer black handles or ever need to touch up any paint work
- Heat Resistant Glove
- Scoop for removing ash
- Allen Key should you wish to adjust the door handle
- A Mug to enjoy a cup of tea whilst admiring the fantastic flame picture
The contents of the kits vary from model to model, so not all the items listed or shown above may be included with your stove.
(Burley Icarus Wood Burning Stove brochure)
Key features of the Burley Icarus 5 Wood Burning Stove can be found below.
|Brand ||Burley |
|Model || |
|Country of Manufacture ||United Kingdom |
|Heater Type ||Wood Burning Stove |
|Nominal Heat Output ||5.0kW |
|Efficiency (Net) ||77.7% |
|Dust (mg/m3) ||9 |
|Particulates (gr/h) ||0.375 |
|Carbon Monoxide ||0.09 |
|Nitrous Oxides ||111 |
|Hydrocarbons ||57 |
|DEFRA Approved ||Yes |
|EcoDesign Compliant ||Yes |
|Airwash System ||Yes |
|Maximum Log Length ||285mm (11¼") |
|Weight ||95kg |
|Flue Size (top exit) ||125mm (5") |
|Minimum chimney diameter ||1525mm (5") |
|Minimum distance to combustible materials. |
All other distance as per Building regulations
Part J or HETAS recommendations
|25cm behind (10") |
30cm at side (11¾")
30cm to top
|Warranty ||5 Years |
The dimensions (width, height, depth) of the Burley Icarus 5 Wood Burning Stove are listed here.
Width: 440mm (17¼")
Height: 730mm (28¾")
Depth: 370mm (14½")
