By pairing technology with style, the Eco R6 Cube creates a striking feature whilst being highly controllable.The largest stove of the Di Lusso range, the Eco R6 Cube boasts an impressive output of between 4kW and 13kW, giving you the option of a hot roaring fire or a couple of flickering flames. The R6 Cube also features innovative 'Flame Blade' which introduces a fourth stream of air into the firebox. This ensures a more complete combustion of the fuel, with lower emissions even at lower burn temperatures.

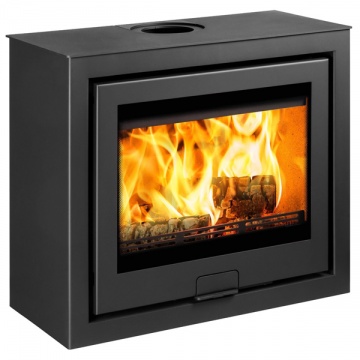

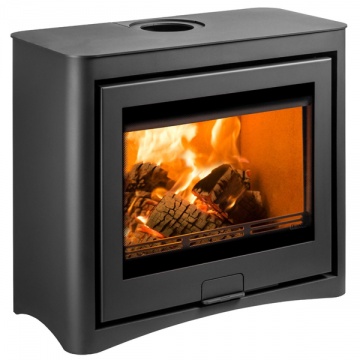

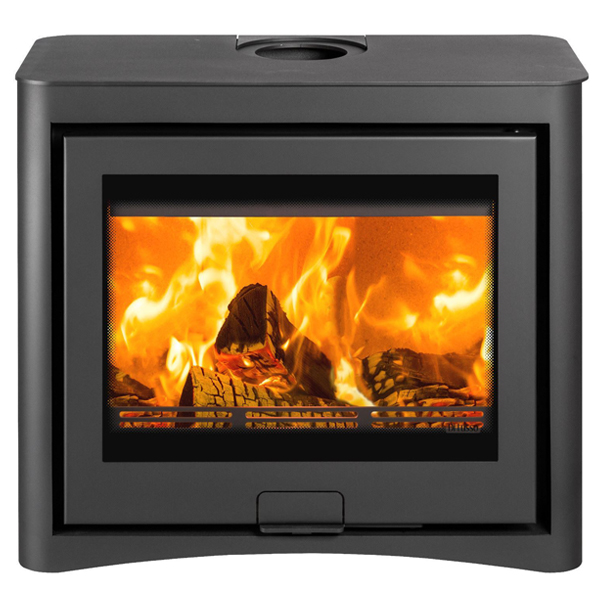

Two variants available with both being constructed using heavy gauge steel. The R6 Cube 'Arco' has rounded corners and a curved feature at the base. The R6 Curve 'Quattro' has clean, straight lines letting the dancing flames take center stage. Finished in classic black, both models ooze contemporary charm and will enhance any modern living area.
Conventional aeration of a wood burning stove firebox can lead to some areas not receiving a sufficient supply of combustion air. The resultant poor mixing of fuel and combustion air reduces combustion efficiency and leads to excessive smoke emissions in the flue gas. The Dual Secondary Air System incorporates an additional stream of secondary air which passes down the rear wall of the firebox towards the fire bed. This stream of air is under the same valve control as the conventional secondary air. When the stove is running at its nominal or rated output the Dual Secondary Air System ensures effective mixing of the fuel and combustion air. This reduces the amount of air required which in turn improves efficiency and reduces particulate.
The highly advanced Di Lusso control system gives you total control. Simply rotate the right dial to increase or decrease the stove’s burn. A small adjustment to the combustion air valve on the dynamic control cassette ensures a constant flow of air through the combustion valve. This prevents smouldering when the fire is performing at lower temperatures.
The Di Lusso R6 Cube can be purchased with a Direct Air Kit if desired or required. Ensuring that air for aiding combustion is brought in externally, a Direct Air Kit allows the R5 Cube to perform at its best, independently from the internal air supply.
With a Cleanburn System for improved performance and efficiency plus a powerful Airwash system, you can be guaranteed that the Eco R6 Cube is achieving the maximum heat from the fuel burnt whilst providing a lovely, unobstructed view of the flames through its large glass viewing window. It has an nominal heat output rating of 6.2kW and is capable of burning logs up to 330mm in length or solid fuels when fitted with the optional Multi-Fuel kit.
Approved for use in smoke controlled areas when fitted with the DEFRA kit. This cutting-edge convection stove has already passed the stringent teats for the upcoming EcoDesign 2022 directive with lower emissions for a cleaner environment.
(Manufacturers instructions are offered as a guide only and may not always be the latest version)
