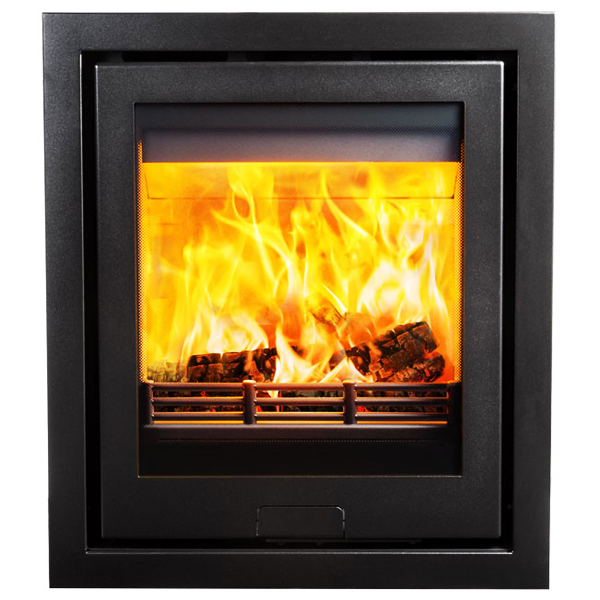

Di Lusso brings contemporary style and innovative flair to your home with their Eco R5 Inset. Their unique Dynamic Control technology has been developed to burn effectively and efficiently at both low and high temperatures. This innovative thinking, combined with the sleek, stylish look of the Di Lusso R5 Inset, makes this one of the most sought-after fires available.

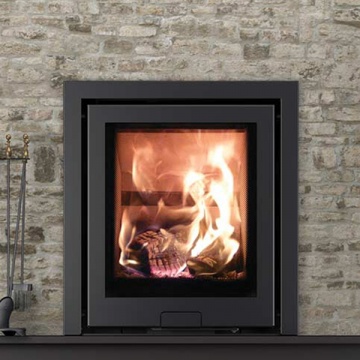

Sitting flush to the wall either raised up or sat at hearth level and offering beautifully clear viewing glass, the R5 Inset fits effortlessly into your home, bringing any room alive with the beauty of natural flame.
For easier installation of the R5, Di Lusso have developed a convection chamber that can be fitted as a separate unit from the firebox. Additionally, the flue collar can be fitted at either a 30° angle or vertical, depending on the specific needs of the installation.
The Di Lusso R5 Inset has eco-conscious combustion at its core. Thanks to forward-thinking firebox technology, this highly advanced wood burning stove already complies with stringent Ecodesign 2022 standards. It is also classed as a Smoke Controlled Appliance allowing you to burn wood even if you're located within a smokeless area.

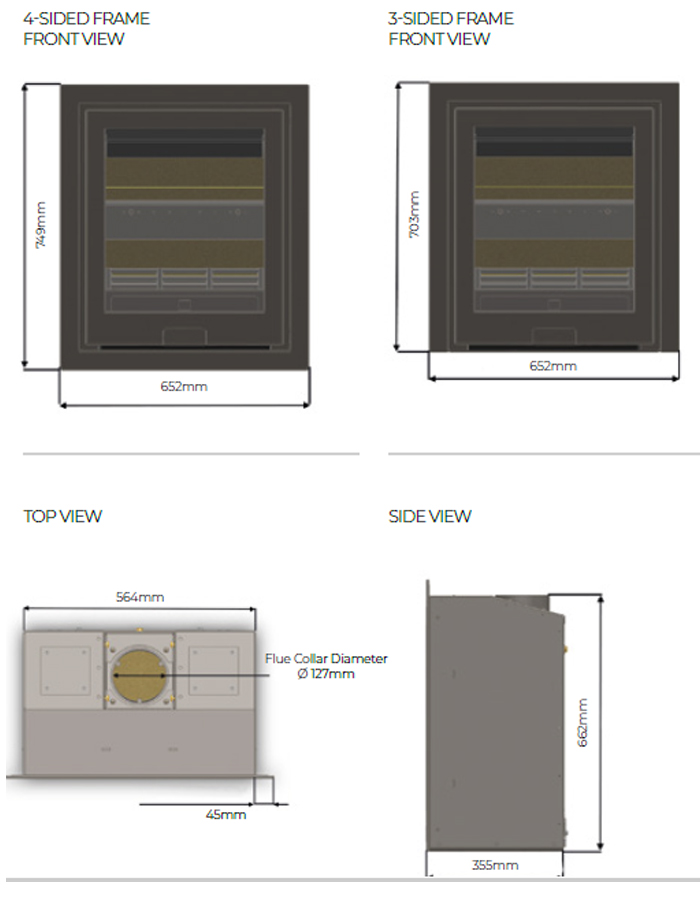

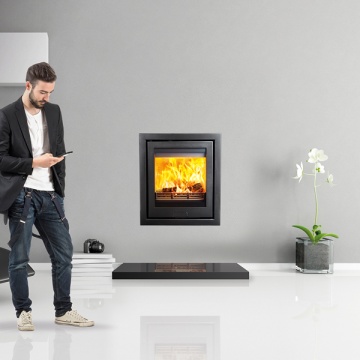

Offered in a choice of Black or Pewter finish, this sleek, modern appliance is offered with a choice of 3 or 4 sided trims depending on your preferred installation type. When inset into a chimney at hearth level, the 3-sided trim is used. If you plan to fit the fire raised up in the wall as shown in the main image, the 4-sided frame will be required.

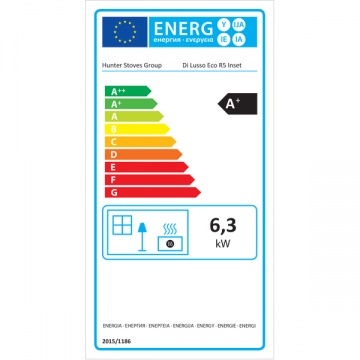

The R5 is a convection stove so you will benefit from quicker heat distribution in the room. With a nominal heat output rating of 6.3kW but with a total heat output range is from 3kW to 13kW, it is well suited to medium sized rooms where more than standard heat is needed. High efficiency of 79% thanks to Di Lusso's premium construction and superb controllability.
Designed to burn wood only, the Eco R5 Inset can accept logs up to 350mm in length. For those who want the option to also burn solid fuel, an optional Multi-Fuel kit is available. The R5 is compatible with direct outside air connection and you have the option of purchasing a Direct Air Kit.

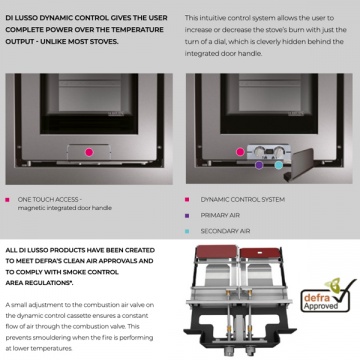

Di Lusso's Exact Air Delivery (EAD) Flame Technology is a cutting-edge system that ensures a more complete combustion of the fuel used. It has been developed to maximize heat extraction and to further lower emissions even at lower burn temperatures. Targeted distribution and circulation of air inside a firebox allows for an optimal mixture of oxygen and combustions gases, which in turn provides the best conditions for a more complete combustion.
Conventional wood burning stoves often provide insufficient or excess aeration of the firebox. If there is a lack of air to support complete combustion, this leads to poor fuel and air mixture, which in turn reduces efficiency and increases emissions. If there is excess air, the firebox will be cooled, combustion accelerated, and efficiency lost.
Di Lusso EAD Flame Technology utilizes targeted primary and secondary air streams. These streams are directed and optimised to enter the combustion chamber at the precise locations and in the correct ratios. They ensure that the air traveling through the firebox creates the required turbulence to correctly mix combustion gases and oxygen, thus enhancing the stove’s efficiency and minimising emissions.
