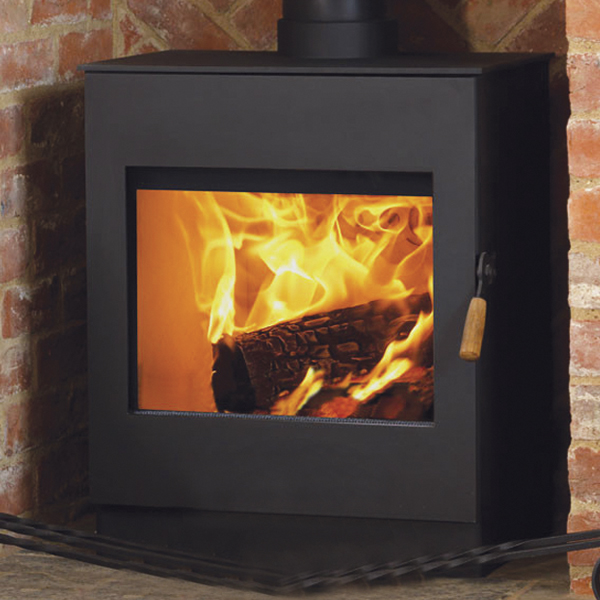

Burley Swithland 9308-C Catalytic Converter Wood Burning Stove

Burley Swithland 9308-C Catalytic Converter Wood Burning Stove
Burley Swithland 9308-C Catalytic Converter Wood Burning StoveBurley Swithland 9308-C Catalytic Converter Wood Burning StoveBurley Swithland 9308-C Catalytic Converter Wood Burning StoveBurley Swithland 9308-C Catalytic Converter Wood Burning StoveBurley Swithland 9308-C Catalytic Converter Wood Burning Stove

The 9308-C Swithland wood burning stove features a catalytic converter which aids complete combustion, turning carbon monoxide into carbon dioxide and releasing more energy in the process. A catalytic converter stove will generally have lower CO and higher efficiency than the stove without.

Burley
Showroom Exclusive
£1,370.00
(VAT incl.)

Burley Wood Burning Stoves Made in the UKThe Burley Swithland 9308-C Firecube Stove incorporates highly advanced catalytic converter technology which aids combustion resulting in improved efficiency and performance. Burley’s research and design has ensured the catalytic converters are working in the perfect temperature band, therefore with normal use they are rated for over 10,000 hours use. Unlike many other catalytic stoves, with average use Burley’s cat’s will never need replacing.

This state-of-the-art wood burning stove is ideal for larger rooms or open-plan living areas as it boasts an nominal heat output rating of 8kW and capable of generating up to a mighty 11.7kW when run on maximum. The catalytic converter technology help the Swithland 9308-C achieve an incredible high efficiency rating of up to 85.6%.

The Swithland 9308-C is from Burley's 'Firecube' range of features an advanced heat exchanger. This heat exchanger scrubs the energy from the hot gasses before they go up the chimney and puts more warmth into your home.

The combination of efficient burning and heat recovery means that Burley are the ONLY company who guarantee that their wood burners will deliver more warmth and use less fuel than any comparable stove you may currently have. Burley are proud to not only manufacture all of their products in their factory in Oakham, but to also buy materials as locally and environmentally responsibly as they can.

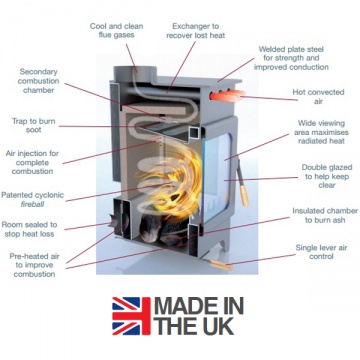

Burley stoves are the cleanest least polluting stoves in the world. This is achieved through a three step combustion process. Firstly, the intensity of Burley's Fireball combustion chamber ensures the majority of particulates are burnt before leaving the combustion chamber. After this an remaining particulates have to pass through Burley's unique soot trap.

This is a red hot stainless steel mesh on which particulates spontaneously combust on contact releasing more energy in the process. Finally, particulates that survive the previous steps still have to make it through the catalytic converter where they are burnt through oxidation. The combination of these three measures results in particulate emissions as low as 0.1 grams per hour. For comparison burning one single open fire produces more particulate emissions than 300 Burley stoves!

Simple and modern in design, the Swithland is constructed from steel. The plate steel sections are 5mm and 8mm thick and are welded by robots with the welds applied in exactly the right place and in exactly the right thickness resulting in the steel sections being melted and fused together to make a virtually indestructible construction. Weighing in at a mighty 105kg, you can be assured that this cutting-edge stove is built to last giving years of dependable service.

Not only is the Burley Swithland a DEFRA exempt stove and approved for burning wood in smokeless areas, it has passed the tests for the upcoming EcoDesign directive. Ecodesign Compliant stoves have been third party independently verified as meeting the maximum emission limits for particulate matter (PM), organic gaseous compounds (OGC), carbon monoxide (CO), nitrogen oxides (NOx), as well as the minimum limits for seasonal efficiency.

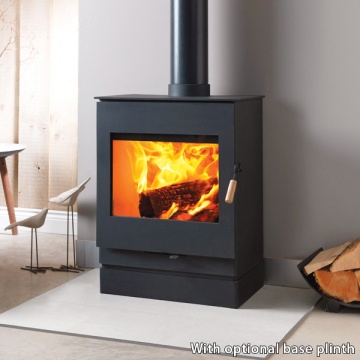

Finished in classic matt black high temperature paint with attractive wood door handle, the dedicated wood burning Burley Swithland 9308-C and is available with an extended base plinth. This is the perfect accompaniment for stand alone installations where height needs to be emphasised. This item is a separate component and fits to the standard height stove.

An optional Outside Air Kit can also be purchased as a Standard Room Seal Kit or Angled Room Seal Kit. The Standard Kit connects directly from the rear of the fire to the back wall. The Angled Kit exits at 900 from the rear of the fire. This can then be connected to standard ducts (available from builders’ merchants), to create a path to an outside wall. A maximum of five 900 angles may be used.

Burley Thank You Pack for StovesIncluded free with the Swithland 9308-C is Burley's 'Thank You' pack which typically contains:

  • Spanner to attach and adjust the tension of the air control lever
  • Coaster to protect the top of your stove
  • Moisture Meter to ensure your wood is dry
  • Glass Cleaner
  • Stove Paint in case you prefer black handles or ever need to touch up any paint work
  • Heat Resistant Glove
  • Scoop for removing ash
  • Allen Key should you wish to adjust the door handle
  • A Mug to enjoy a cup of tea whilst admiring the fantastic flame picture

The contents of the kits vary from model to model, so not all the items listed or shown above may be included with your stove.


Download Instructions
(Manufacturers instructions are offered as a guide only
and may not always be the latest version)
Burley Wood Burning Stoves Brochure
Download Brochure
(Burley Wood Burning Stove brochure 2020)



ove
Brand Burley
Model

Swithland 9308

Country of Manufacture United Kingdom
Heater Type Wood Burning Stove
Nominal Heat Output 8.0kW
Maximum Heat Output 11.7kW
Efficiency (Net) 85.6%
Dust (mg/m3) 17
Particulates (gr/h) 0.4
Carbon Monoxide 0.04
Nitrous Oxides 115
Hydrocarbons 46
DEFRA Approved Yes
EcoDesign Compliant Yes
Airwash System Yes
CO concentration @ 13% Oxygen 0.12%
Maximum Log Length 430mm (17")
Weight 105kg
Air Vent requirement 1,962mm sq. min 50mm diameter
(Air Vent not required if stove is room sealed)
Minimum flue draught mm H2O 0.5mm
Flue Gas temperature 183ºC
Spigot temp 274ºC
Flue Size (top exit) 150mm (6")
Minimum chimney diameter 150mm (6")
Minimum distance to combustible materials.
All other distance as per Building regulations
Part J or HETAS recommendations
10cm behind (4")
40cm at side (16")
40cm to top
Warranty 5 Years

Burley Swithland 9308-C Dimensions

Optional Base Plinth 114mm high

Due to the size and weight, all Burley Wood Burning Stoves will be delivered to you on a palletised delivery service. All pallet deliveries are kerbside/front door delivery only, so please arrange adequate means to take your order into your home. Under normal circumstances this may take 2 people.

Current delivery times for the Burley Swithland 9308-C is approximately 7-10 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
