ACR Trinity Wood Burning Stove
ACR Trinity Wood Burning Stove
ACR Trinity Wood Burning Stove
ACR Trinity Wood Burning Stove
ACR Trinity Wood Burning Stove

ACR Trinity Wood Burning Stove

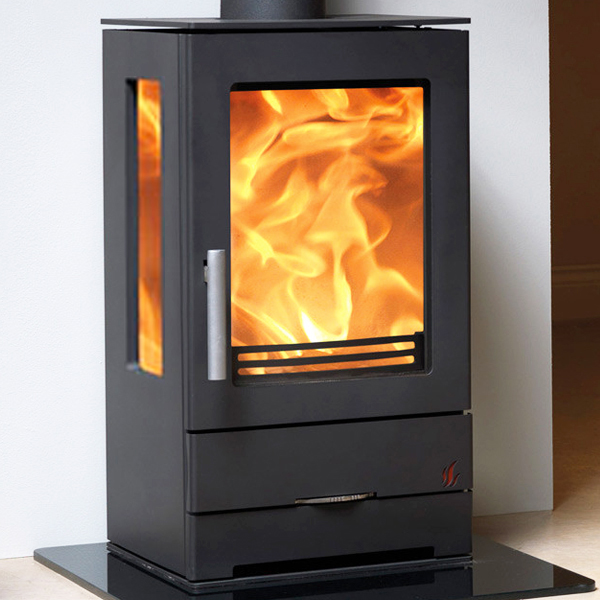

Equally suited to either free-standing installation or within a fireplace chamber, the ACR Trinity is a contemporary styled, wood burning stove boasting a vast array of innovative features. Available with the option of side viewing windows for a 180° view of the dancing flames.

£1,699.00(Inc. 20% VAT)+ FREE mainland UK delivery
Visit our showroom

This item is only available from our showroom. Please call our team for more information.

At a glance...

Freestanding Stove
DEFRA Approved
Heat Output
4.1kW to 5kW
Flue Compatibility
Class 1
Product Information

Boasting a stylish and distinct 'box' design, the Trinity wood burning stove from ACR Heat Products will create a truly spectacular feature within any modern home.

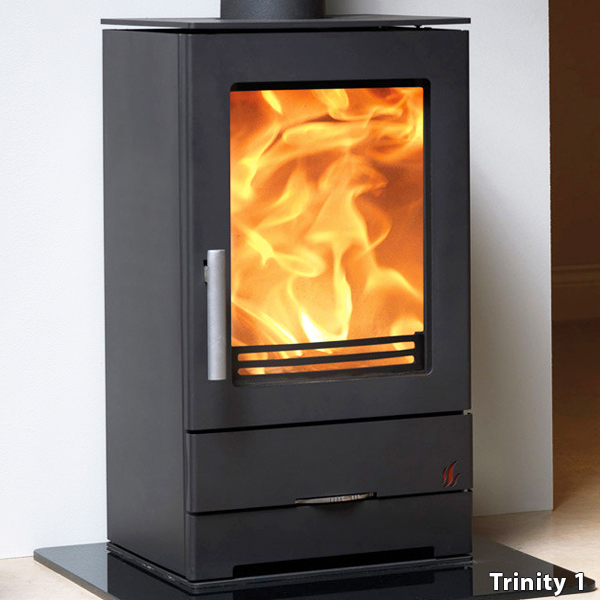

The large door with attractive stainless steel handle accommodates a huge glass viewing window which will give a perfect display of the mesmerising flames. For a even better view no matter where you are situated in the room, the Trinity '3' also incorporates windows on either side of the appliance.

Being a smoke exempt appliance, you can burn wood even in smoke controlled areas. This will allow you to enjoy the charm, ambience and superb performance of a real stove whether you live in the town or country.

Constructed using high quality steel, the ACR Trinity has a nominal heat output of 5kW making it ideal for standard sized rooms and in most instances, additional ventilation is not normally required. The high efficiency lined internal firebox ensures you get the maximum heat from the fuel burnt whilst the powerful Airwash system helps maintain a clean glass window.

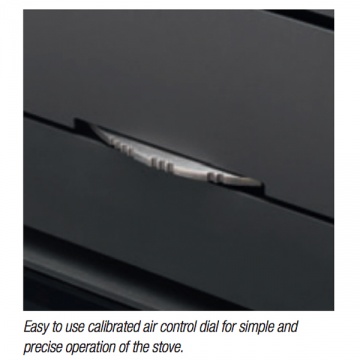

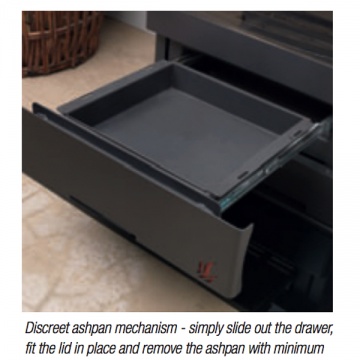

A popular feature on the Trinity stove is the discreet 'slide-out' ashpan system located below the door. This allows for clean operation and ash removal with minimal mess. A single air control dial allows you to easily adjust the air setting to ensure the optimum burn rate.

Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)

Key Features

Key features of the ACR Trinity Wood Burning Stove can be found below.

Fuel Wood
Nominal Heat Output 5kW
Net Efficiency 81.8%
Gross Efficiency 74.4%
Max Hearth Temp Less than 100°C
Weight 90kg
Max Log Size 40cm
Flue Diameter 125mm (inside diameter)
Flue Location Top or Rear
Floor to centre of rear flue outlet 635mm
Rear of stove to centre of top flue outlet 150mm
Construction Steel
View Product Fiche ACR Trinity Product Fiche
Warranty 10 Years on casting

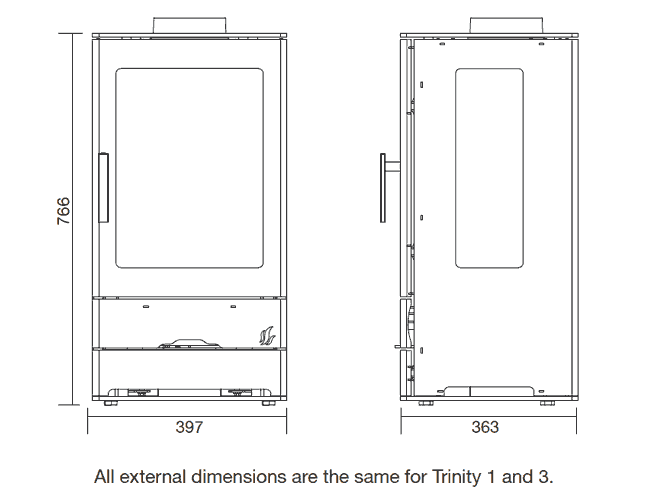

The dimensions (width, height, depth) of the ACR Trinity Wood Burning Stove are listed here.

ACR Trinity Stove Dimensions


Please note: Due to rising freight charges, we are now being forced to charge extra for delivery to Highland postcodes.

Due to the size and weight of wood burning stoves, all ACR products will be delivered to you on a palletised delivery service. All pallet deliveries are kerbside/front door delivery only, so please arrange adequate means to take your order into your home. Under normal circumstances this may take 2 people.

Current delivery times for the ACR Trinity 1 & 3 is approximately 7-10 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
