ACR Neo 1F / 3F Eco Wood Burning Stove

ACR Neo 1F / 3F Eco Wood Burning Stove
ACR Neo 1F / 3F Eco Wood Burning StoveACR Neo 1F / 3F Eco Wood Burning StoveACR Neo 1F / 3F Eco Wood Burning StoveACR Neo 1F / 3F Eco Wood Burning StoveACR Neo 1F / 3F Eco Wood Burning Stove

Following on from the huge success of ACR's existing NEO range of contemporary stoves, the 1F and 3F now give you the opportunity to fit the stove into a enclosure due to the stove having standard legs. Enjoy the ultimate view of the flames from the stoves magnificent window!

ACR
Showroom Exclusive
£1,555.00
(VAT incl.)

Having proved extremely popular, ACR Heat Products have now introduced a standard leg option model that is designed for insetting into a taller enclosure. The NEO 1F and 3F Eco still boasts a huge main viewing window giving you the ultimate view of the flickering flames with the 3F model also having the benefit of side windows for the maximum fire view no matter where you sit in the room!

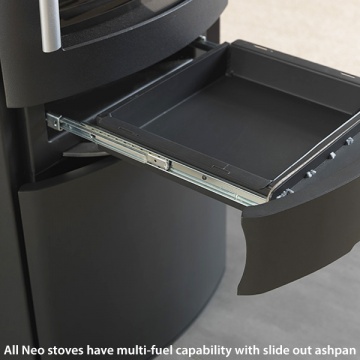

Combined within a suitable fireplace or inset into a simple chimney opening, the NEO 1F and 3F Eco Stove has the innovative features to back up its great looks. A unique 'slide-out' ashpan with easy emptying facility, powerful Airwash ensuring the glass stays clear of build up and as a ultra clean burning stove it has DEFRA approval allowing you to burn both wood and smokeless fuels even if you are located in a smoke controlled area. This model has also passed the tests and is fully EcoDesign compliant.

Excellent high efficiency rating of 79% and a nominal heat output of 5kW so additional ventilation (air vent) is not normally required. Top or rear interchangeable flue outlet makes the ACR NEO 1F / 3F ideal for a wide variety of installation options. Full control of the air controls using a single state-of-the-art sliding controller located at the front of the appliance.


Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)

Fuel Wood only
EcoDesign Ready Yes
Suitable for use in Smoke Controlled Areas Yes
Nominal Heat Output 5kW
Total Heat Output Range 2.5kW to 7kW
Efficiency 72.3% gross  /  79.4% nett
Hearth Requirement Superficial non combustible 12mm hearth required (see Bldg Regs) - below 100 degrees
Weight 125kg
Flue Diameter 125mm (inside diameter)
Flue Location Top or Rear
Construction Steel
Max Log Length 40cm
Warranty 10 Years on casting

ACR Neo 1F and 3F Stove Sizes

Due to the size and weight of wood burning stoves, all ACR products will be delivered to you on a palletised delivery service. All pallet deliveries are kerbside/front door delivery only, so please arrange adequate means to take your order into your home. Under normal circumstances this may take 2 people.

Current delivery times for the ACR Neo 1F & 3F is approximately 7-10 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
