Following on from the popular freestanding stove models, the new Vogue cast iron fascia has been developed to fit with Gazco's high efficiency inset gas fire the Logic HE.
The Logic HE is a standard sized inset gas fire designed to be fitted into a standard fireplace back panel and provides superb performance combined with excellent high efficiency.
This glass-fronted model is the ideal companion for the new Vogue fascia. A bevelled edge on the inside of the cast iron front frames the glass viewing window beautifully giving you an unobstructed view of the glowing fuel bed and flickering flames.
Available with three control options; manual controls located at the base of the fire, a slide control lever on the top right hand side of appliance or a fully automatic and thermostatic remote control giving armchair operation. Non-reflective glass provides a spectacular flame view*.
Classic coal or an authentic Log** fuel effect can be selected. This stunning fire will transform any fireplace and is capable of proving up to 4.10kW of heat. Designed for Class 1 conventional chimneys or Class 2 (5") prefabricated flues subject to adequate depth of 250mm (9¾") being available.
*Non-reflective glass is currently only supplied on the moulded coal fuel bed version.
**Log fuel effect only offered on slide or remote gas fire / Log effect models have a deeper fire box size of 350mm.

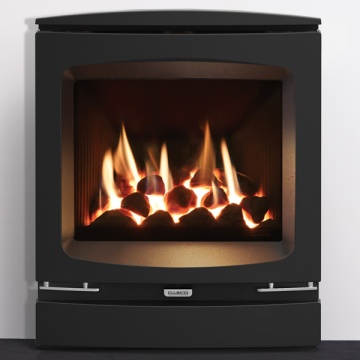

Coal Fuel Effect |

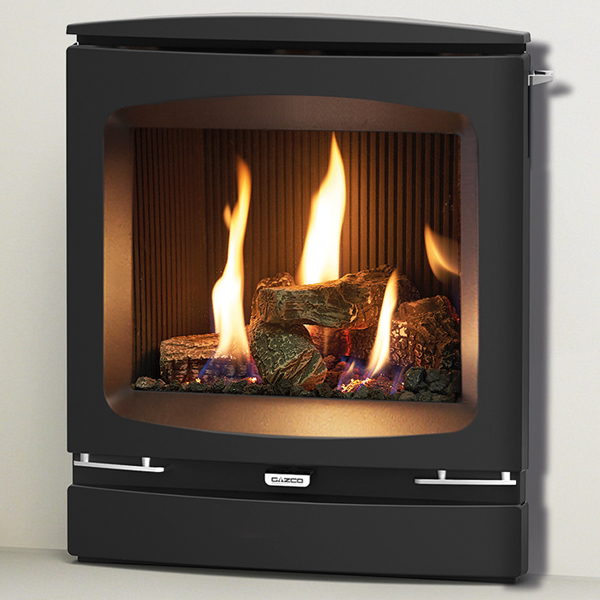

Log Fuel Effect |
Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)
Key features of the Gazco Logic HE Vogue Convector Gas Fire can be found below.
| Fuel | Natural Gas or LPG |
| Direct Heat Output
(Manual Control) | Coal - Natural Gas: 4.10kW / LPG: 4.00kW |
| Direct Heat Output
(Slide Control) | Coal - Natural Gas: 4.10kW / LPG: 3.90kW
Log - Natural Gas: 3.90kW / LPG: 3.90kW |
| Direct Heat Output
(Remote Control) | Coal - Natural Gas: 4.10kW / LPG: 3.90kW
Log - Natural Gas: 3.90kW / LPG: 3.90kW |
| Efficiency | Coal: 89% / Log: 84% |
| Flue Requirement | Class 1 & Class 2 |
| Colour/Finish | Black |
| Fuel Effect | Coals or Logs with Slide or Remote control only |
| Control | Manual / Slide / Remote |
| Gas Connection Size | 8mm |
| Warranty | 5 Years (extended warranty) |
The dimensions (width, height, depth) of the Gazco Logic HE Vogue Convector Gas Fire are listed here.
Logic HE Conventional Flue Gas Fire Opening Dimension Requirements
Width: 410mm
Height: 560mm
Depth: 250mm (350mm on Log fuel effect versions)
Overall Vogue Fascia Size: 513mm wide x 610mm high x 64mm deep
Please note: Due to rising freight charges, we are now being forced to charge extra for delivery to Highland postcodes.
Standard gas fires such as the Gazco Logic HE Vogue gas fire will be delivered using a Premier courier service. We will contact you to book-in a suitable delivery date as soon as we're ready to dispatch your item(s). The courier service we use has a service where they will send you a text message on the morning of the delivery to advise on a 1 hour time slot when your item(s) will arrive.
Current delivery times for the Logic HE Vogue gas fire is approximately 7 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
