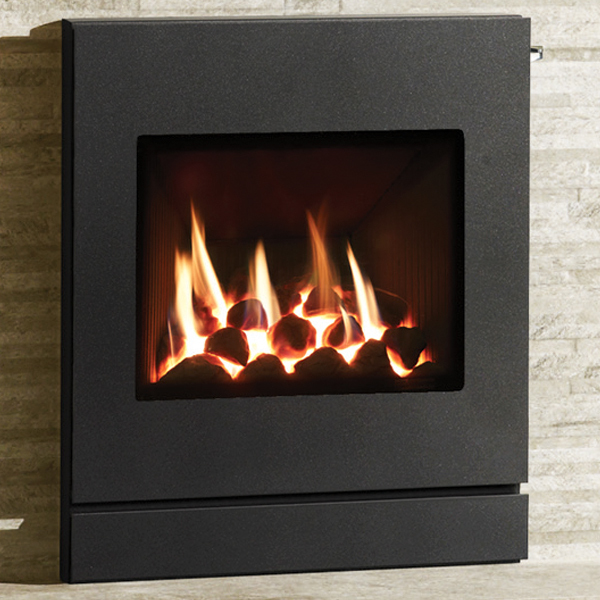

Gazco Logic HE Designio2 Convector Gas Fire

(1 Review)

Boasting cutting edge design, this fabulous new frame available in a selection of colours including shining black glass is a stylish companion to the versatile Gazco Logic HE gas fire. The Designo2 opens up the options to the installation possibilities including wall-mounting.

£899.00(Inc. 20% VAT)+ FREE mainland UK delivery
Visit our showroom

This item is only available from our showroom. Please contact us for more information.

At a glance...

Inset (Hearth or Wall)
Heat Output
4.1kW to 5kW
Flue Compatibility
Class 1 or Class 2
Fire Frontage
Product Information

Gazco 5 Year Extended WarrantyA popular model for anyone looking at replacing an older gas fire for one that is designed with excellent efficiency and heating performance without compromising on stunning aesthetic appeal. The Gazco Logic HE Designio2 features a striking new frame which is offered in a choice of finishes.

This stylish gas fire gives you the option of hearth mounting into a fireplace with standard opening or for a space saving installation without the need to fit a hearth, it can also be fitted raised up on the wall.

The non-reflective glass* front is virtually invisible and certainly doesn't distract from the mesmerising flame picture the Logic HE Designo2 produces. With a variety of controls options to suit individual needs, this is one of the most popular, high efficiency gas fires available today.

Standard manual controls are located at the bottom of the fire and accessed behind fascia panel. A Slide control comprises of a discreet lever at the top right hand side of fire which allows you to turn the fire on/off and adjust flame height without the need to bend right down. The new advanced Remote control option allows ignition and extinguishing of the fire as well as flame and heat adjustment. You can also set the Logic HE Designio2 to maintain a chosen temperature if desired from the remote handset.

With heat output at a maximum of 4.10kW, it is ideal for standard room sizes and will provide ample warmth and ambience all year round. Now also offered with a highly authentic log effect fuel bed on the slide and remote control versions only. The log effect model also has a deeper fire box.

This latest Mk3 version model now features non-reflective glass for crystal clear viewing

Coal Fuel Effect

Log Fuel Effect

Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)

Key Features

Key features of the Gazco Logic HE Designio2 Convector Gas Fire can be found below.

Fuel Natural Gas or LPG

Direct Heat Output
(Manual Control)

Coal - Natural Gas: 4.10kW / LPG: 4.00kW

Direct Heat Output
(Slide Control)

Coal - Natural Gas: 4.10kW / LPG: 3.90kW
Log - Natural Gas: 3.90kW / LPG: 3.90kW

Direct Heat Output
(Remote Control)

Coal - Natural Gas: 4.10kW / LPG: 3.90kW
Log - Natural Gas: 3.90kW / LPG: 3.90kW

Efficiency Coal: 89% / Log: 84%
Flue Requirement Class 1 & Class 2
Colour/Finish Graphite steel / Black Glass
Fuel Effect Coals or Logs with Slide or Remote control only
Control Manual / Slide / Remote
Gas Connection Size 8mm
Warranty 5 Years (extended warranty)

The dimensions (width, height, depth) of the Gazco Logic HE Designio2 Convector Gas Fire are listed here.

Logic HE Conventional Flue Gas Fire Opening Dimension Requirements

Width: 410mm

Height: 560mm

Depth: 250mm (350mm on Log effect model)

Overall Designio2 Fascia Size: 519mm wide x 606mm high x 40mm deep
