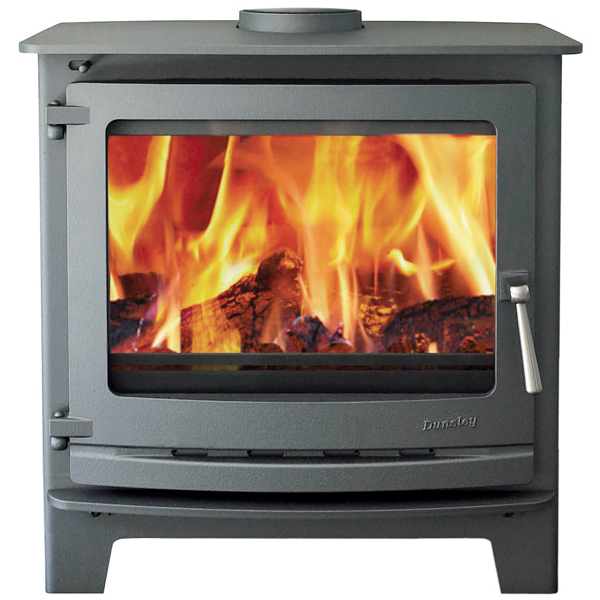

Dunsley Avance 500 Wood Burning / Multi-Fuel Stove

Dunsley Avance 500 Wood Burning / Multi-Fuel Stove
Dunsley Avance 500 Wood Burning / Multi-Fuel StoveDunsley Avance 500 Wood Burning / Multi-Fuel StoveDunsley Avance 500 Wood Burning / Multi-Fuel StoveDunsley Avance 500 Wood Burning / Multi-Fuel StoveDunsley Avance 500 Wood Burning / Multi-Fuel Stove

The latest addition from Dunsley Stoves is packed with the very latest innovations resulting in a contemporary styled wood burner that has passed the EcoDesign 2022 legislation. The Dunsley Avance 500 is British made and superb choice for those looking for the ultimate in home heating.

Dunsley Stoves
Showroom Exclusive
(VAT incl.)

HETAS Approved & British MadeMore contemporary in design than the rest of the range, the Dunsley Avance 500 is a exciting new addition to this highly regarded range of Bristish made stoves. Constructed using the optimum combination of high grade quality steel plate for the body and robust cast iron for the door, you can be guaranteed of an air-tight combustion with superb high efficiency and the perfect heat output for standard sized rooms.

This highly advanced wood burning stove has been designed by Dunsley from the ground up and is the perfect choice for contemporary living. It has passed all the new standards for EcoDesign 2022 and boasts an energy rating of A+. Featuring a very large glass window for a superb view of the dancing flames, and a design to fit the most modern of homes.

The Dunsley Avance 500 is a free standing wood burning stove approved to burn wood logs in smoke control areas. The appliance is constructed from cast iron and high grade quality steel plate. It incorporates interchangeable rear and top flue outlets and a fully adjustable base for levelling. Finished in a metallic black high temperature paint as standard with optional colours available.

Dunsley Stove Colours

EcoDesign 2022 Compliant StoveThe Avance 500 has high level controllability with a fast response for high and low burn. The most ideal setting will quickly be found moving the slide slowly to find the most suitable position. Using the correct rate of burning, efficiencies of up to 81.2% burning wood logs can be achieved. The stove flue exits to fit a 5" (125mm) diameter flue pipe.

The nominal 5kW output of the Avance can vary between 2.5 - 7.5kW depending on weight and type of wood being used. Wood burning is standard on the Avance 500 however a solid fuel kit is also available as an extra for burning smokeless fuels.

Optional Log Store base available which raises fire chamber to a perfect eye level whilst providing a handy area to store logs.

Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)

Fuel Wood (Smokeless Fuels can be burnt when optional kit is fitted)
Nominal Heat Output 5.0kW
Burning Efficiencies Burning Wood: 81.2%  /  Burning Ancit: 75.7%
Hearth Temperatures 66°C
Flue Diameter 125mm (5")
Flue Location Top or Rear (Interchangeable)
Construction Steel & Cast Iron
HETAS Approved Appliance Yes
DEFRA Approved Yes
EcoDesign Compliant Yes
Warranty Parts 1 Year  /  Stove Body 10 Years

Overall Width: 605mm

Overall Height: 630mm (Short Leg model: 560mm)

Overall Depth: 275mm

Floor to centre of rear flue outlet: 500mm (Short Leg model: 430mm)


Optional Log Store Base sizes: 605mm wide  x  325mm high

Due to the size and weight of wood burning stoves, all Dunsley Heat products will be delivered to you on a palletised delivery service. All pallet deliveries are kerbside/front door delivery only, so please arrange adequate means to take your order into your home. Under normal circumstances this may take 2 people.

Current delivery times for the Dunsley Avance 500 is approximately 7-10 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
