ACR Wychwood Wood Burning Stove

ACR Wychwood Wood Burning Stove
ACR Wychwood Wood Burning StoveACR Wychwood Wood Burning StoveACR Wychwood Wood Burning StoveACR Wychwood Wood Burning StoveACR Wychwood Wood Burning Stove

A recent addition to the ACR range, the Wychwood is a contemporary designed wood burning stove that benefits from being SIA EcoDesign Ready which by 2022 all wood burner stoves have to meet. A huge glass viewing window provides the ultimate view of the highly efficient fire within.

Free Fitters Kit:
Wychwood Handle:
Wychwood Outside Air Kit:
Wychwood Heat Shield:
Sterling Grey Paint:
Showroom Exclusive
(VAT incl.)

A stunning new dedicated wood burning stove from renown manufacturers ACR. The Wychwood combines striking, modern looks with highly advanced technology resulting in a appliance that is extremely efficient, suitable for use in smoke controlled areas and also passes the stringent tests making it EcoDesign Ready which is a scheme that comes into force in 2022 which all wood burning stoves have to pass.

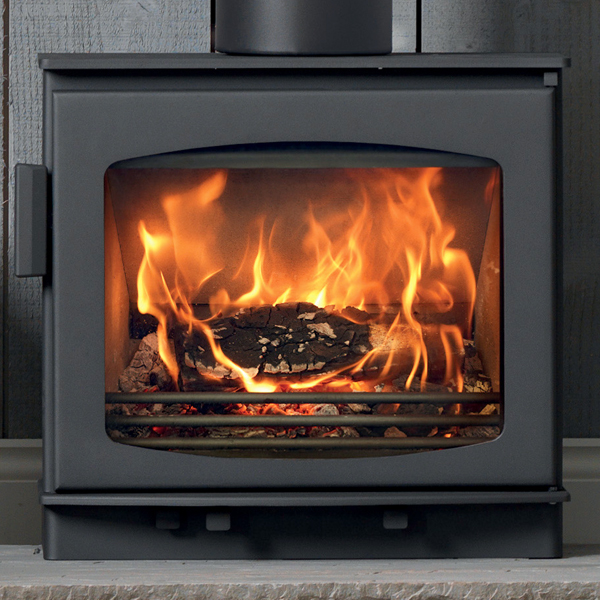

With its contemporary styling the Wychwood woodburning stove creates a stunning focal point in any home. Supplied as standard in a Sterling Grey paint finish the Wychwood features a large landscape door glass for an excellent view of the flames. With a powerful 5Kw output the ACR Wychwood is designed to burn exceptionally cleanly. A very powerful Airwash system helps keep the glass panel free of deposits.

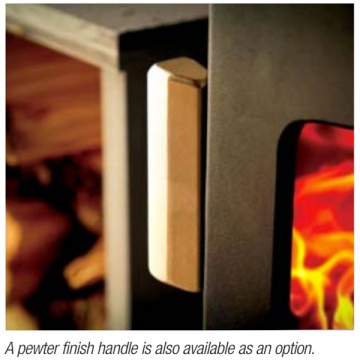

Featuring outstanding efficiency the Wychwood is EcoDesign Ready and smoke exempt, meaning that you can burn wood in smoke controlled zones. An optional pewter finish handle is also available for this stove. When fitted, the optional heat shield allows for the stove to be installed 100mm away from combustible materials to the rear, and 250mm to the sides*.

If opting for the Sterling Grey finish, an optional 400ml tin of Sterling Grey paint is available allowing you to colour match the matt black stove pipe included in the free fitters kit.

*Insulated flue pipe must be used to enclose the flue collar.

Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)

Fuel Wood
Nominal Heat Output 5kW
Output - Min / Max 3kW / 6.5kW
Net Efficiency 82.2%
Gross Efficiency 75.1%
Max Hearth Temp Less than 100°C
Weight 90kg
Max Log Size 35cm
Flue Diameter 125mm (inside diameter)
Flue Location Top or Rear
Floor to centre of rear flue outlet 422mm
Rear of stove to centre of top flue outlet 127mm (This distance will increase if the optional heat shield is installed)
Construction Steel
Warranty 10 Years on casting

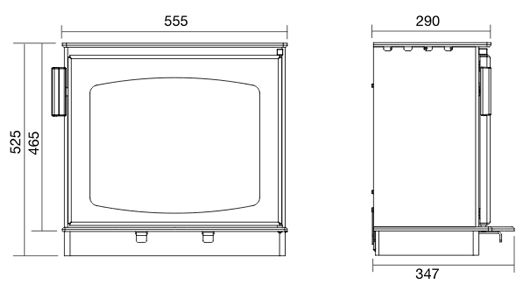

ACR Wychwood Wood Burning Stove Dimensions

Due to the size and weight of wood burning stoves, all ACR products will be delivered to you on a palletised delivery service. All pallet deliveries are kerbside/front door delivery only, so please arrange adequate means to take your order into your home. Under normal circumstances this may take 2 people.

Current delivery times for the ACR Wychwood is approximately 7-10 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
