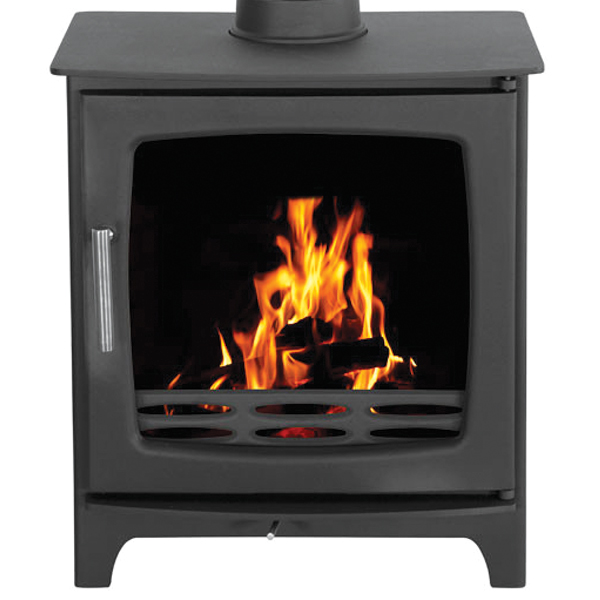

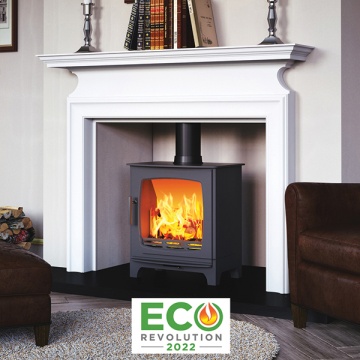

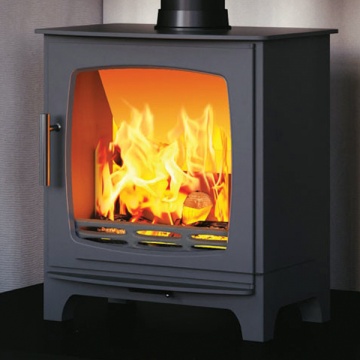

Carron ECO Revolution 5kW Wood Burning Stove
Carron ECO Revolution 5kW Wood Burning Stove
Carron ECO Revolution 5kW Wood Burning Stove
Carron ECO Revolution 5kW Wood Burning Stove

Carron ECO Revolution 5kW Wood Burning Stove

The latest addition to Carron's popular range of stoves is the ECO Revolution 5kW model. This highly advanced wood burning stove is EcoDesign 2022 compliant and boasts Cleanburn technology with excellent high efficiency. An ideal stove for modern day living in standard sized rooms.

£849.00(Inc. 20% VAT)+ FREE mainland UK delivery
Visit our showroom

This item is only available from our showroom. Please call our team for more information.

Ready to buy!

Flames Flash Sale

At a glance...

Freestanding Stove
DEFRA Approved
Heat Output
4.1kW to 5kW
Flue Compatibility
Class 1
Wood Only
Product Information

The new Carron ECO Revolution ticks all boxes for a stove designed for the UK market. It has passed the stringent tests and is ready for the EcoDesign directive in 2022 thanks to it being exceptionally clean burning, it can be used to burn wood in smokeless areas, it is very efficient and it looks great with a large viewing window for a wonderful view of the flames.

Having been tested at the highly regarded team at KIWA, the Carron ECO Revolution is EcoDesign 2022 compliant and is supplied with a 5 year guarantee. Protecting the environment, this attractive woodburner has a superb high efficiency rating of 82.7% whilst with the latest advances in stove technology, it burns extremely cleanly.

The stylish stove body is constructed using steel which heats up quickly and therefore distributes heat into the room fast. The large glass viewing window is a popular feature and provides a lovely view of the dancing flames. A Cleanburn system ensures the fuel burnt provides the most heat whilst keeping the glass clear of soot and debris from the fire.

The ECO Revolution has a nominal heat output of 5kW so it is ideally suited to standard sized rooms and in most instances does not require additional ventilation. Designed for connection to a 125mm (5") flue at the top or rear of the stove.

Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)

Key Features

Key features of the Carron ECO Revolution 5kW Wood Burning Stove can be found below.

Fuel Wood
Nominal Heat Output 5kW
Total Efficiency 82.7%
Mean CO emission (at 13% O2) 0.08%
Mean flue gas temperature 253ºC
Flue Mass Gas Flow 3.9g/s
Flue Draft Required 12Pa
Weight 73kg
Flue Diameter 125mm (5")
Maximum Log Size 300mm length / 125mm width
Construction Steel body with cast iron door
Clearances to Combustibles Side 550mm / Rear 600mm
Clearances to Non-Combustibles Side 150mm / Rear 150mm*
Warranty 5 Years (stove body)

*This can be reduced to 50mm if the wall thickness is greater than 200mm

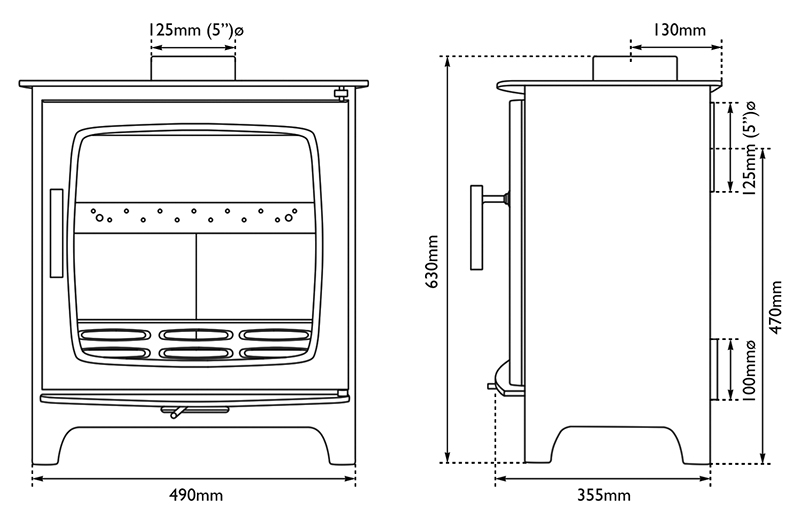

The dimensions (width, height, depth) of the Carron ECO Revolution 5kW Wood Burning Stove are listed here.

Carron ECO Revoulution 5kW Stove Sizes

Please note: Due to rising freight charges, we are now being forced to charge extra for delivery to certain Scottish postcodes.

Due to the size and weight of wood burning stoves, all Carron Stoves will be delivered to you on a palletised delivery service. All pallet deliveries are kerbside/front door delivery only, so please arrange adequate means to take your order into your home. Under normal circumstances this may take 2 people.

Current delivery times for the Carron ECO Revolution 5kW Wood Burning Stove is approximately 7 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
