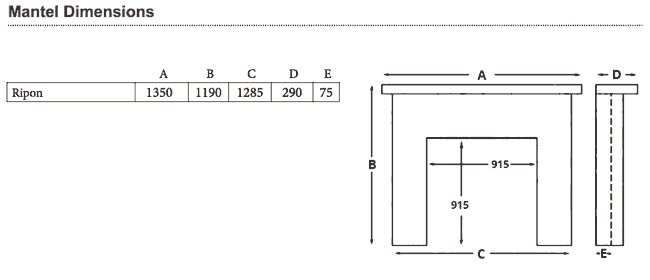

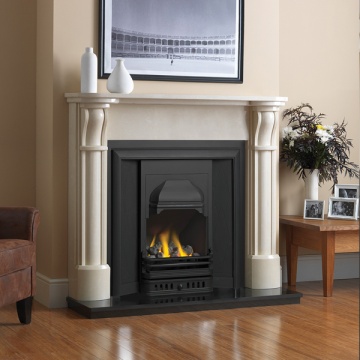

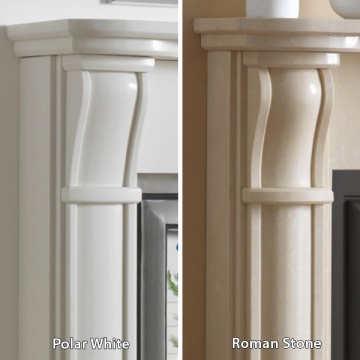

A timeless design crafted in a choice of Polar white or Roman Stone micro-marble which will take centre stage within any style of interior. The Cast Tec Ripon features a simple curved corbel and stepped shelf with attractive curved detail. Standard size of 1350mm (53") make it perfect for small to medium sized rooms.

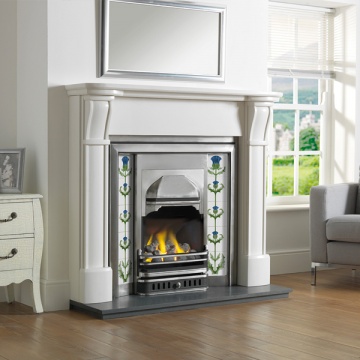

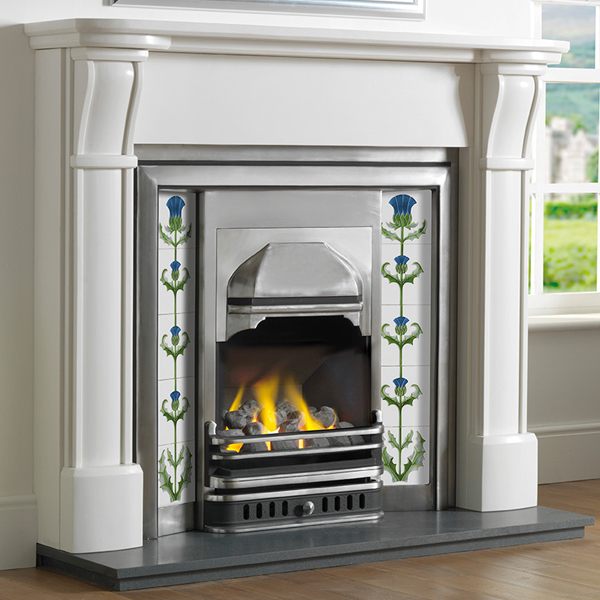

Shown here with the optional tiled cast insert cast iron insert from the exclusive 'Integra' range. Integra inserts offer the perfect solution for anyone looking for a classical Victorian styled insert but whom also want the advantage of a high performance gas fire. Due to their innovative design, the insert has a dedicated range of fire options including high efficiency and no-chimney gas fires plus an electric fire that allows flat wall installation.
The Cast Tec Ripon may also be combined with most other standard back panel options.
Hearths
The Integra Collection boasts a range of beautiful, practical and robust hearths to suit the Integra appliance of your choice. Suitable materials used for the hearths include honed or polished black granite, slate stone and limestone. Hearths come in three different styles:
Boxed & Lipped: These are traditional hearths with 20mm thickness and 30mm risers below.
Munro: These are more robust and contemporary having a 30mm thickness and 20mm risers below. Munro hearths are softer on the eye and to the touch having attractive rounded bullnose edges.
Solid Fuel: Hearths used for wood burning or solid fuel appliances are traditionally cut into four sections and fixed back together to allow for expansion. For use with Solid Fuel Integra, Cast Tec supply sturdy sectioned Munro hearths in honed or polished black granite.
Integra Fire Options
Integra 'HO' (High Output) - Total depth of 195mm, this open-fronted gas fire has a maximum heat output of 3.9kW with efficiency of up to 55%. Available in manual control with adjustment to the fire made by turning the discreetly located controls at the bottom of the fire behind the insert ashpan cover. A slide control option allows for full operation of the fire using a lever at the top, right-hand side of the fire or a remote control option is available allowing for armchair operation.
Convector Plus - Capable of providing a superb maximum heat output of up to 4.6kW, this innovative, open-fronted gas fire features the very latest technology and also boasts improved efficiency of up to 67%. Total depth of 195mm with Manual, Slide or Remote control versions offered.
Classic Multiflue - Designed especially for installations into Class 2 flues with a slimline depth of only 120mm. 3.3kW maximum heat output with an efficiency rating of 50%. This open-fronted gas fire is only available as with manual controls.
Integra HE (High Efficiency) - For those looking for the lowest running costs, the Integra HE is a glass-fronted gas fire boasting fantastic high efficiency of 83%. Available in manual, slide or remote control, it has a maximum heat output of 3.8kW with a total depth of 195mm.
Integra Balanced Flue - A glass-fronted gas fire suitable for installation in homes without a chimney or flue. When fitted on an external wall, the Integra Balanced Flue has a pipe attached to the back of the fire which allows the fumes to be expelled horizontally through the wall. Appliance depth of 193mm with a maximum heat output of 3.8kW.
Integra Solid Fuel Box - Glass-fronted, inset multi-fuel stove which is DEFRA exempt and allows you to burn wood logs or smokeless fuels even if you are located in a smoke control area. Nominal heat output of 5kW with efficiency rating of 78%. Total depth of this inset stove is 270mm and it would require a Class 1 flue (real chimney).
