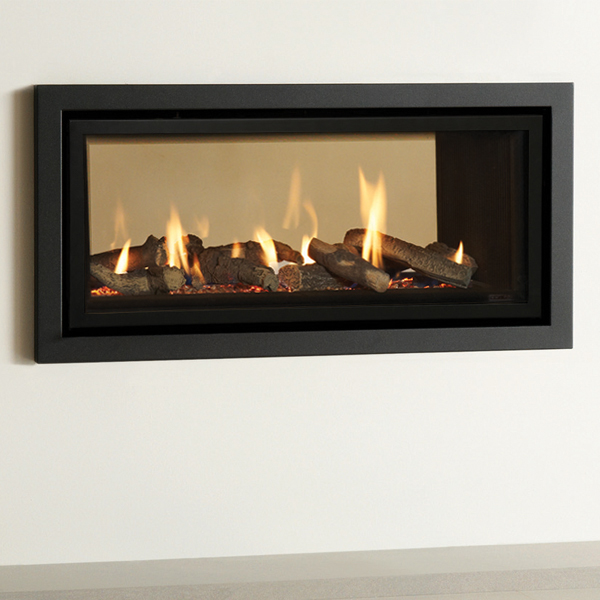

Gazco Studio 2 Duplex Double Sided Balanced Flue Gas Fire

Gazco Studio 2 Duplex Double Sided Balanced Flue Gas Fire
Gazco Studio 2 Duplex Double Sided Balanced Flue Gas FireGazco Studio 2 Duplex Double Sided Balanced Flue Gas FireGazco Studio 2 Duplex Double Sided Balanced Flue Gas FireGazco Studio 2 Duplex Double Sided Balanced Flue Gas FireGazco Studio 2 Duplex Double Sided Balanced Flue Gas Fire

For a truly awe-inspiring focal point in your home, the high efficiency, the double-sided Gazco Studio 2 Duplex gas fire offers the ultimate stylish solution to practical dual space heating. Featuring a wonderfully realistic log-effect fuel bed with hand-finished detailing plus choice of designer frames.

Gas:
Fuel Effect:
Interior:
Control:
Studio 2 Balanced Flue Kit:
Remote Mains Adaptor:
Side 1 Frame for Gazco Studio 2 Duplex:
Side 2 Frame for Gazco Studio 2 Duplex:
Gazco Fires
Showroom Exclusive
£2,544.00
RRP: £2,995.00

Gazco High Efficiency Balanced Flue Gas FireThe Gazco Studio range has long been appreciated for its widescreen flame picture, high efficiency output and broad selection of frame style choices. The Glass Fronted Studio 2 Duplex has been introduced to allow these fabulous features along with a heat output of up to 7.9kW to be enjoyed from two rooms at once from the same fire.

The Studio Duplex also includes a wonderfully realistic log-effect fuel bed with hand-finished detailing and a highly attractive glowing ember effect for the ultimate in real fire ambiance. To further extend your options for personalisation, the Duplex offers a choice of linings, each providing a distinctly different look for your fire. The vermiculite linings complement the hand-painted logs and boost the light appeal of the glowing fire. The black reeded linings however, provide a striking and contrasting backdrop that really serves to display the beautiful flames to their fullest potential.

The log-effect fuel bed complete with subtle glowing ember bed and giving a high efficiency rating of up to 92%, the Studio 2 Duplex gas fire not only provides an impressive visual focal point in two rooms, it also produces an impressive 7.9kW heat output.

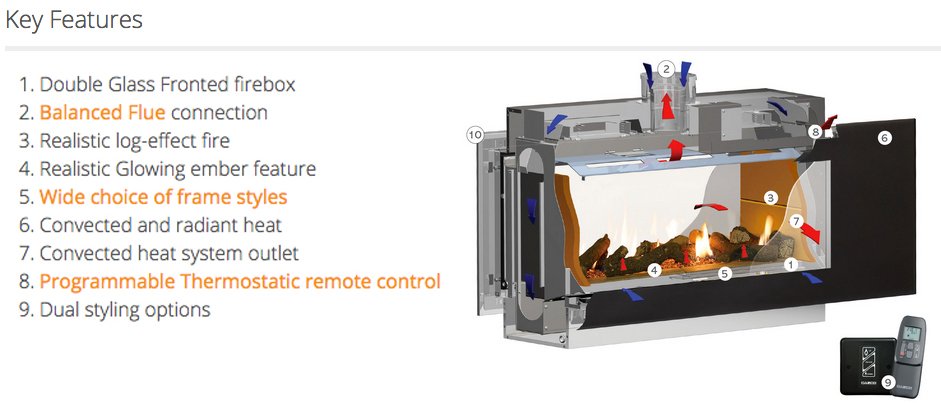

Gazco Studio 2 Duplex Gas Fire Key Features

Duplex Frames

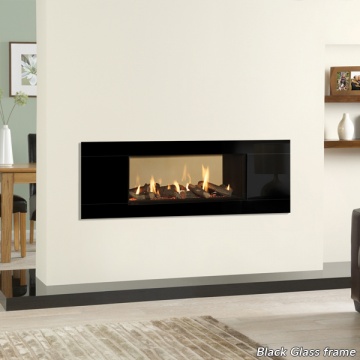

The Studio 2 Duplex gas fire has the benefit of dual styling possibilities, allowing you to select a different look for each side of the fire – offering double the impact in your home. Whether opting for a minimalist Edge look with its frameless design or choosing a Glass frame with its sparkling, reflective black glass, there are a selection of frame styles that will attract the eye and enhance your two interior spaces. A selection of the stylish frame choices can be seen below:

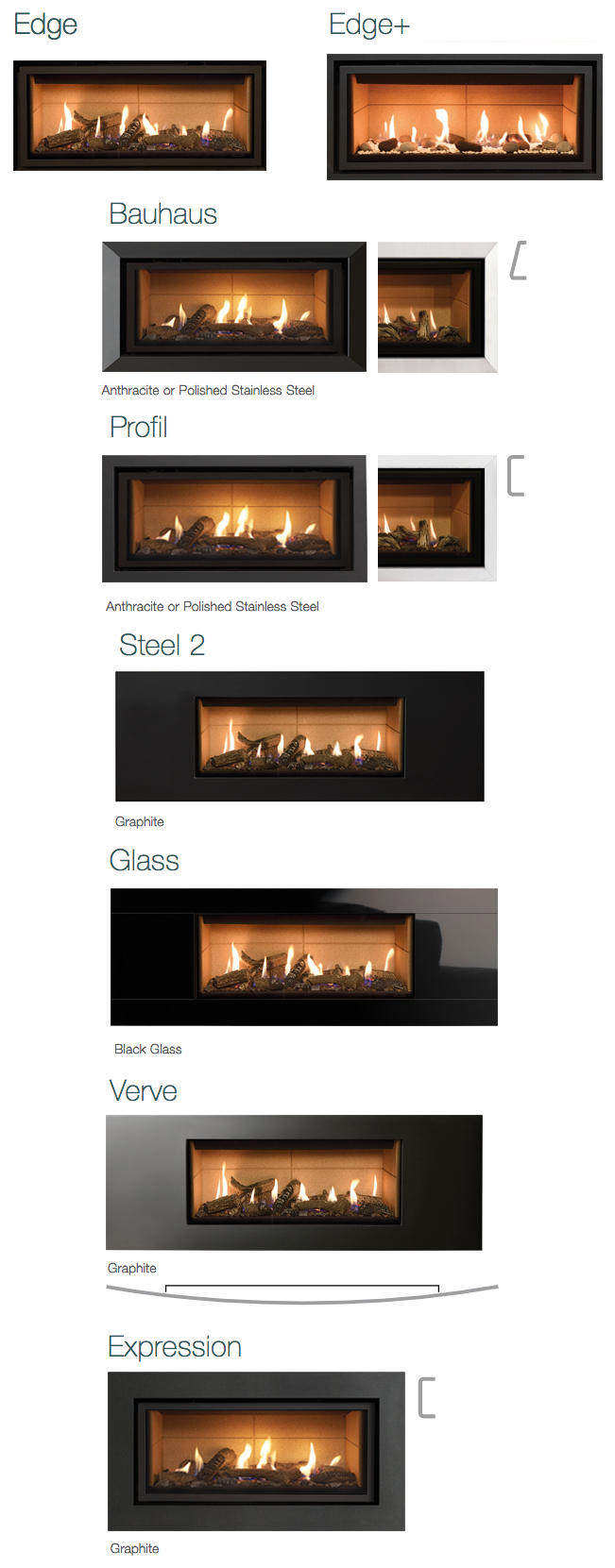

Gazco Studio Glass Fronted Frame Options

Studio Edge & Cool Wall Kits

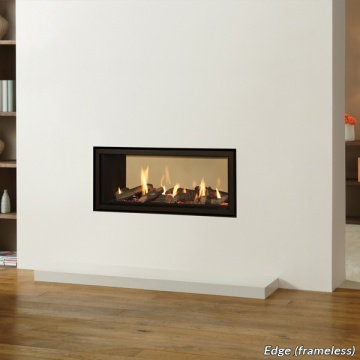

Edge Kit
This kit is screw-mounted to the front flange of the outer firebox. The L-shaped attachments can either provide a 20mm return against which high temperature plasterboard/screed can be butted up for the ‘clean edge’ look or, if the firebox flange is on the outside of a brick or studwork wall, allow ceramic or stone tiles to be fixed with a similar look. The Edge Kit is finished in black to complement the Studio.

Cool Wall Kit
Again, screw-mounted to the front flange of the outer firebox, the 60mm deep U-shaped attachments of the Cool Wall kit are designed primarily for studwork false chimney breasts. The additional depth allows some of the heat to be vented up into the void above the firebox and then re-enter the room at a higher level. The effect is to produce a cooler wall immediately above the appliance than would otherwise be the case. The Cool Wall Kit is left unfinished so that it can be painted to match the front face of your fireplace.

Balanced Flue Kit
The balanced flue kit offered as standard with this fire is Gazco's standard 'Up & Out' kit. The position of the fire will ultimately determine what balanced flue components are needed as all installations will be unique. Please contact us directly to advise on the location of the proposed position and we can quote for the required balanced flue lengths.


Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)


Fuel Natural Gas or LPG
Fire Size Studio 2 Duplex
Flue Type Balanced Flue
Direct Heat Output 7.90kW
Efficiency 92%
Flue Diameter 158mm
Flue Location Top

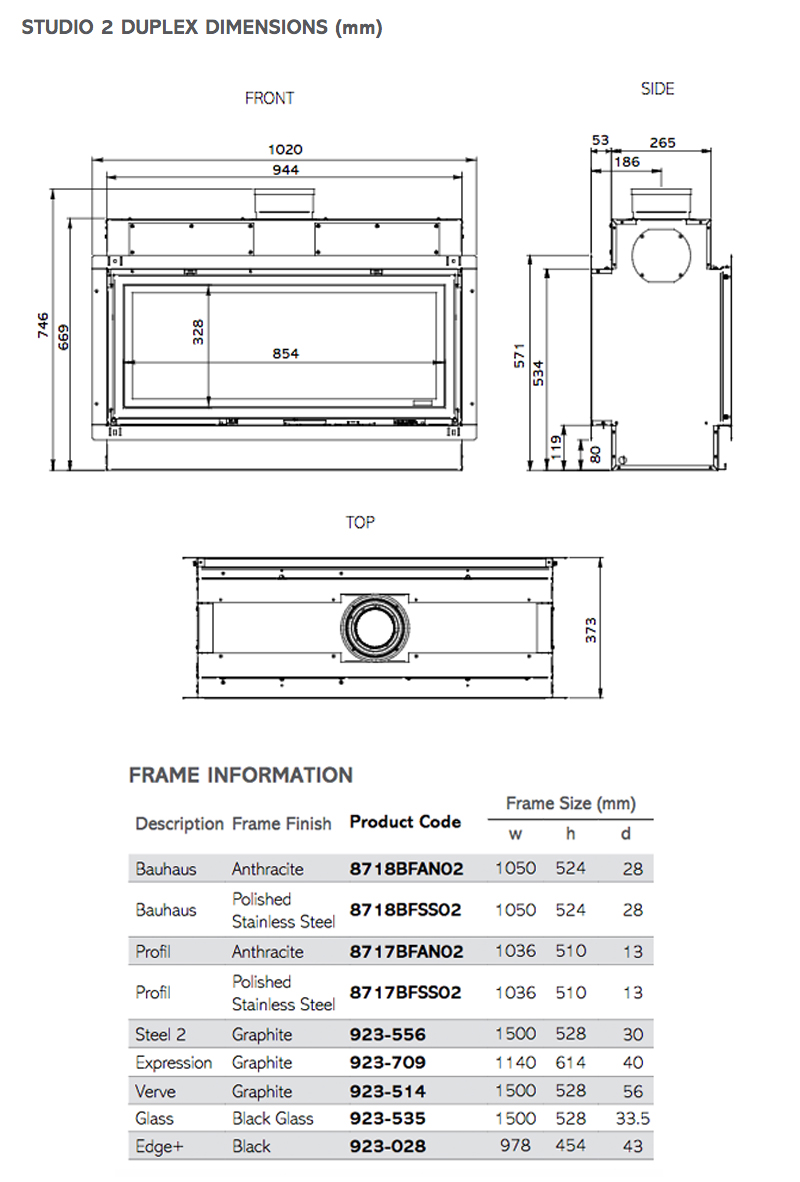

Gazco Studio 2 Duplex Dimensions

Due to the size and weight of this model, the Gazco Studio 2 Duplex Balanced Flue gas fire will be delivered to you on a palletised delivery service. All pallet deliveries are kerbside/front door delivery only, so please arrange adequate means to take your order into your home. Under normal circumstances this may take 2 people.

Current delivery times for the Studio Duplex is approximately 7-10 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
