Behind the stunning black granite or natural limestone fascia is Eko Fire's advanced catalytic technology which delivers the ultimate in efficiency, significantly reducing running costs while all the time reassuring you that it is one of the safest gas fire technologies in the world.
For complete safety and peace of mind, the Eko 5090 incorporates an Oxygen Depletion Sensor (ODS), which detect when the oxygen levels in the room fall below a specified level and cause the pilot flame to lift away from the sensing probe. This activates the Flame Failure Device (FFD), which cuts off the gas supply to the fire and renders the appliance safe.

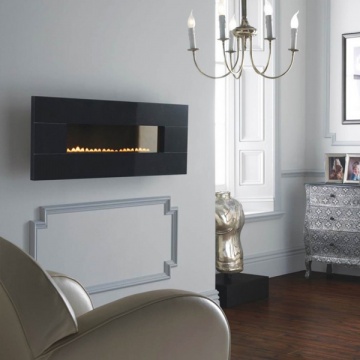

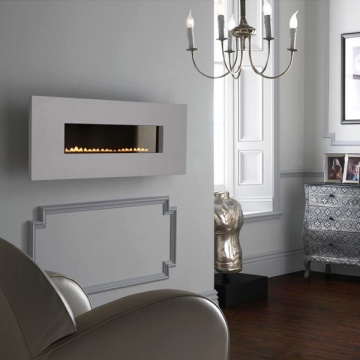

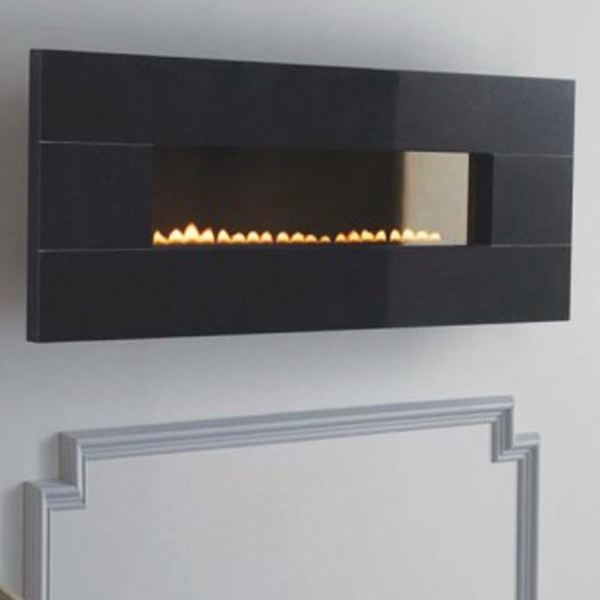

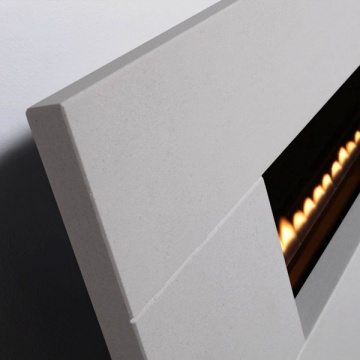

The panoramic fascia on this designer gas fireplace is offered in your choice of sleek, black granite or cool, natural limestone. It is the perfect companion to highlight the wide strip of dancing flames set behind a glass window. Operated by manual controls concealed on the appliance engine. On maximum setting, the room will benefit from 2.6kW of heat and on minimum, the output reduces to 1.5kW.
Designed for installation in to most rooms in your home including lounges, dining rooms, kitchens and conservatories of at least 30m³ (typically 11' 6" x 11' 6" with an 8' high ceiling). The Eko 5090 (as with all flueless gas fires) requires a 100cm² air vent in the room where the fire is installed.
Simple 'hang-on-the-wall' installation. Flueless fires incorporate the latest in technology and do not need a chimney or flue to operate. Instead, the combustion gases pass through a catalytic converter system, positioned at the top of the appliance, which converts carbon monoxide into harmless carbon dioxide and water vapour, levels of which are so low they are typically present in fresh air. In fact, the catalytic converter works so effectively that it can actually help to clean the air by neutralising airborne particles and odours, therefore helping to reduce household allergies.
Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)
Key features of the Ekofires 5090 Flueless Gas Fire can be found below.
| Fire Type | Flueless Gas (Portrait L30G) |
| Gas Type | Natural Gas |
| Efficiency | 100% |
| Minimum Room Size | 30m³ |
| Control Type | Manual - Rotary |
| Flame/Fuel Effect | Ribbon Flame - No Fuel Effect |
| Open or Glass Fronted | Glass Fronted |
| Heat Input (Max/Min) Gross | 2.6kW / 1.5kW |
| Heat Output (Max/Min) Gross | 2.6kW / 1.5kW |
| Installation | Wall Mounted (No Inset) |
| Air Vent Required | 100cm² |
| Safety | Oxygen Depletion Sensor / Flame Failure Device / Catalytic Converter |
| Guarantee | 3 Years |
The dimensions (width, height, depth) of the Ekofires 5090 Flueless Gas Fire are listed here.
| A | B | C |
| 1100mm (43¼") | 385mm (15¼") | 185mm (7¼") |
Please note: Due to rising freight charges, we are now being forced to charge extra for delivery to Highland postcodes.
Standard sized fires such as the Eko 5090 will be delivered using a Premier courier service. We will contact you to book-in a suitable delivery date as soon as we're ready to dispatch your item(s). The courier service we use has a service where they will send you a text message on the morning of the delivery to advise on a 1 hour time slot when your item(s) will arrive.
Current delivery times for the Eko 5090 Flueless Gas Fire is approximately 7-10 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
Returns information
We understand that from time to time some of our customers may change their mind or simply not be pleased with their chosen products once delivered and/or installed. Our returns policy should hopefully help with the process of returning your order in this instance. Please feel free to contact us should you have any further queries.
