Gazco eStudio 165R Inset Electric Fire

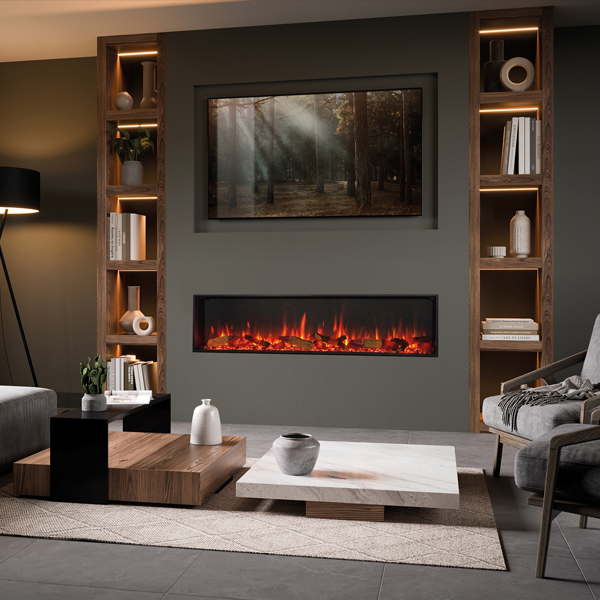

A great size of fire to combine with a larger TV above in a fashionable 'Media Wall' set-up. The eStudio 165R features cutting-edge, LED flame technology using Gazco's vibrant Chromalight® LED system. Flame colours and heater settings are all accessible from the remote handset, putting control right at your fingertips!

£1,695.00(Inc. 20% VAT)+ FREE mainland UK delivery
Visit our showroom

This item is only available from our showroom. Please call our team for more information.

At a glance...

Wall Mounted (Inset)
Heat Output
1.1kW to 2kW
Flue Compatibility
No Chimney or Flue Needed
Flame Effect
Product Information

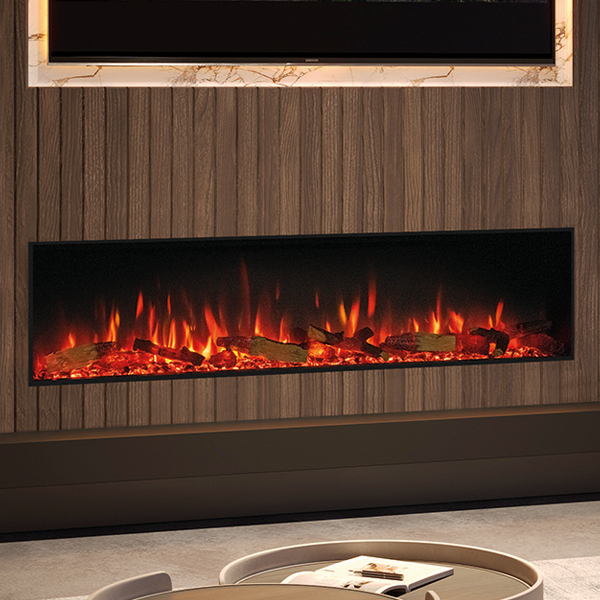

Gazco 2 Year Extended Warranty Electric FiresA superb, premium electric fire that will look sensational built into a media wall with widescreen TV hung above. The eStudio 165R is the largest model in this designer range of inset electric fires.

This contemporary modern electric fireplace, can create the perfect ambience at just the touch of a button, with or without the heat. Its fascinating glowing ember and log-effects, multiple different flame effects and vibrant Chromalight® LED system, are all accessible from the remote handset, putting control right at your fingertips.

For added splendour, the optional Mood Lighting System can be placed almost anywhere you see fit – and is a favourite for feature media wall installations.

A choice of true-to-life, glowing logs - For the utmost realism, sections of the log-effects glow when the fire’s Chromalight flames and ember bed are activated, just like real burning logs.

All eStudio sizes come with a hand detailed log-effect. For something a little different, an optional Silver Birch log-effect creates an alternative but equally captivating display, available for inset models.

Dynamic ember effects - To create the illusion of real embers, the eStudio’s fuel bed is made up of blackened glass media, dusted with a realistic ash-like coating. When lit from below by the eStudio’s Chromalight systems, the fuel bed’s media glows and darkens in different areas, seemingly at random, for a ‘living’ ember look.

Gazco eStudio Standard Logs

Enchanting flame visuals

Flame effects can be customised to suit your mood, with three different combinations of varying tones and intensity settings. Choose from a vibrant flame picture that casts a rich glow over a darkened room, or opt for some background ambience – great for when you’re watching a movie.

Immersive ember bed up-lighting

Gazco eStudio ChromalightThe eStudio’s Chromalight up-lighting system shines through the fire’s fuel bed and illuminates the log-effects from below. In addition to a natural amber glow, the ember bed up-lighting can be set to a range of different colours to create a bespoke display. There is also the gradually changing Spectrum mode, which transitions through each colour.

Enjoyment – with or without the heat

The eStudio features a 2kW thermostatic heating system, which can be programmed to warm your living room to a pre-set temperature. This ‘set and forget’ heating function lets you enjoy your eStudio’s visuals whilst the fire manages the heat. You can also turn off the heating system completely and enjoy the eStudio’s flame and lighting effects without any heat at all, if desired.

eStudio LED Mood Lighting SystemOptional atmospheric mood lighting

Upgrade any eStudio inset fire with the versatile LED Mood Lighting System, to maximise your fire’s ambience. Inset eStudio fires can connect to up to 6 metres of LED strips that can be positioned around the fire, under shelves, or even around a TV to provide atmospheric mood lighting. The LED Mood Lighting System can be set to the same 13 vibrant Chromalight colours of the eStudio’s fuel bed, and is easily controlled with the fire’s Eco handset.

Complete control

Gazco Eco Remote Control HandsetFor quick and convenient control, this advanced electric fire comes with our Thermostatic Eco handset. This easy-to-use remote control puts the eStudio’s range of visual effects including flames, up-lighting and mood-enhancing lighting options at your fingertips.

Featuring a thermostatic sensor, the eStudio’s Eco handset also gives you the freedom to set your desired ambient room temperature as well as program daily and weekly heating schedules.

thermostatic heating
Select the optimum room temperature you desire and your eStudio does the rest for you. Choose between 15ºC and 25ºC and the eStudio will utilise its thermostat to reach the desired level as efficiently as possible.

flame design
Select Amber with Yellow accent, Yellow with Amber accent or an equal measure of both colours to suit your mood, with five brightness settings for each flame colour combination to give you the perfect ambience.

chromalight ember bed up-lighting
Choose from 13 different vibrant colours, which can each be fine-tuned with five brightness levels, to illuminate the eStudio’s realistic fuel bed. Alternatively, you can opt for the gradually changing Spectrum mode, which cycles through each colour.

adaptive start control
Adaptive Start allows the eStudio to automatically turn on up to 45 minutes in advance of a pre-set time to reach the desired room temperature ready for when you want to use it.

heating advance mode
You can manually advance any pre-set heating cycle to either come on or turn off before the programmed time without disrupting daily or weekly scheduling.

comfort temperature
Comfort Temperature lets you set the thermostat as you would your central heating, with Eco and Comfort settings, which offer further freedom to adjust the temperature by +/- 4ºC if desired

daily and weekly programming
Set the eStudio to turn on to provide heat at certain times of the day, or even days of the week, using the handset’s Daily and Weekly Timer control functions.

open window detection
A sudden drop of temperature of 4ºC or more within five minutes, like that caused by an open window, will automatically turn off the eStudio’s heat to save energy. Easily resume heating simply by pressing the heat button, or allowing the room’s temperature to rise by closing the window.

mood-enhancing lighting setting
Depending on which eStudio you have chosen, you can easily control the mood-enhancing floor/down-lighting or LED mood lighting system using the fire’s Eco Handset. Cycle through the 13 different colours to choose the ambience you desire, either matching the eStudio’s Chromalight ember bed colour or selecting a different colour for an eye-catching combination.

ecodesign compliant
The Gazco eStudio’s innovative energy saving features make it compliant with stringent Ecodesign energy product standards.

The eStudio collection consists of various inset fire sizes and complete electric suites, giving you a range of options to suit your living space. Thanks to their design, eStudios have a slimmer depth than many other electric fires. This design feature makes them suitable for a variety of installation applications, particularly where floor space is limited. Inset models are ideal for media wall installations or custom integration into a wall space.

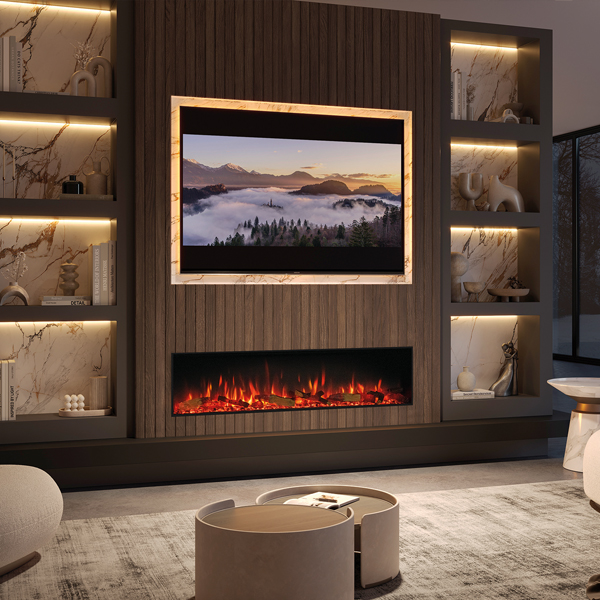

Thanks to their slimmer depth, eStudio inset fires make an excellent choice for installations with a TV above or as part of a media wall.

Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)

Key Features

Key features of the Gazco eStudio 165R Inset Electric Fire can be found below.

Fuel Electric
Flame Chromalight Immersive LED system
Flame Colour 3 different flame options: Amber, Blue, Amber with Blue Accent
Fuel Bed Colour Dynamic, sparkling fuel bed lighting can be set to 13 vibrant colours
Heat Output 1.0kW / 2.0kW
Flame without heat setting Yes
Fuel Effects Logs (optional Birch logs available
Efficiency 99%
Installation Inset
Control Thermostatic remote control for ambient heating
Visible flame area when fitted 1574mm x 330mm (WxH)
Ecodesign Compliant Yes
Warranty 2 Years (extended warranty)

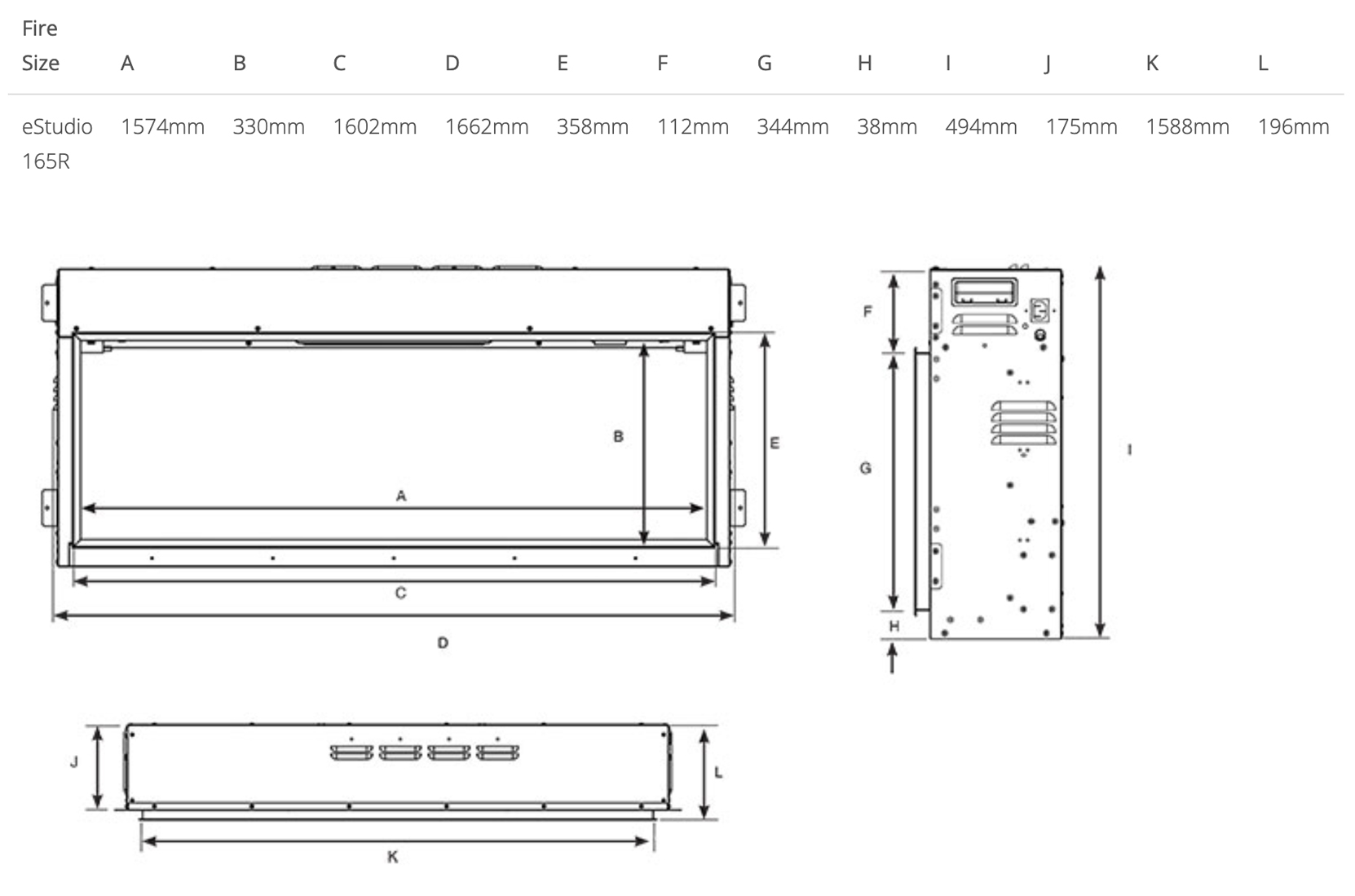

The dimensions (width, height, depth) of the Gazco eStudio 165R Inset Electric Fire are listed here.

eStudio 165R Electric Fire Sizes


Please note: Due to rising freight charges, we are now being forced to charge extra for delivery to certain Scottish postcodes.

Due to the size and weight of this model, the Gazco eStudio Inset 165R electric fire will be delivered to you on a palletised delivery service. All pallet deliveries are kerbside/front door delivery only, so please arrange adequate means to take your order into your home. Under normal circumstances this may take 2 people.

Current delivery times for the eStudio Inset 165R Inset is approximately 7 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
