Ekofires 5510 Flueless Gas Fire

Ekofires 5510 Flueless Gas Fire

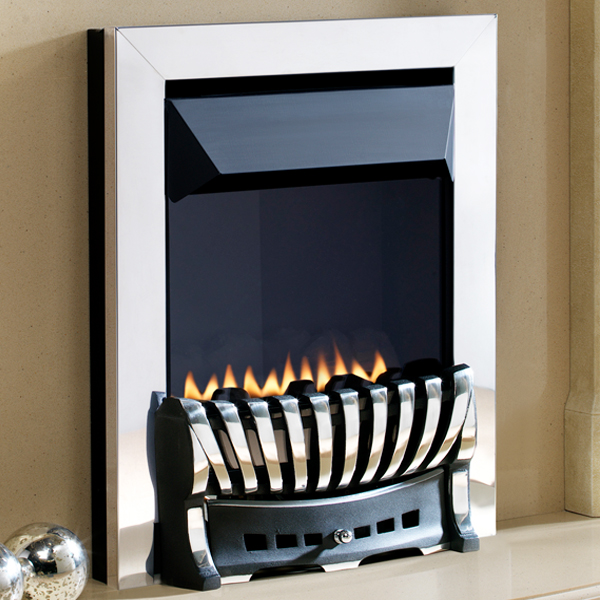

The stylish Eko 5510 is designed to be inset into a standard fireplace opening and will compliment both classical or contemporary fireplace designs as well as providing unbeatable 100% efficiency. Alternatively, it can be fitted free-standing against a flat back panel using the optional spacer frame.

Gas:
Control:
Trim:
Eko Fires Fret:
Eko Spacer:
Ekofires
£429.00
RRP: £599.00

Eko Fires Official Supplier - 3 Year GuaranteeAn ideal option for properties that don't feature a flue or chimney or for anyone looking for the ultimate in high efficiency whilst providing your room the beauty and ambience of a real flame.

The Eko 5510 will compliment a vast array of fireplace designs and is fitted as standard with a 43mm spacer frame to maximise installation opportunities. It can be simply fitted against a flat, internal or external wall when combined with a 4" rebated fireplace surround. Where adequate inset depth is not available, there are two optional spacer frames offered - a 75mm for when combining within a 3" rebated surround or for a completely free-standing option, choose the 155mm spacer frame.

Real dancing flames set behind a glass panel are capable of providing up to 2.3kW of glorious heat to rooms with a minimum dimension of 27m³. The only other requirements when fitting this popular model is a 100cm² air vent in the room and a 8mm gas supply.

Tailor the Eko 5510 to fit perfectly within your room décor with a choice of chrome, brass or black Classic Plain trim and a wide array of frets. Easy operation using the manual rotary controls hidden behind the fret drawer at the base of the fire.

Incorporating state-of-the-art catalytic technology which cleans the hot air leaving the combustion chamber, converting Carbon Monoxide into harmless Carbon Dioxide. It works so effectively that it can also assist in neutralising unwanted airborne particles and allergens present in the home, helping to create a cleaner and friendlier environment.


Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)

Fire Type Flueless Gas (Inset PI27G)
Gas Type Natural Gas
Efficiency 100%
Minimum Room Size 27m³
Control Type Manual - Rotary
Flame/Fuel Effect Ribbon Flame - Coal
Open or Glass Fronted Glass Fronted
Heat Input (Max/Min) Gross 2.3kW / 1.3kW
Heat Output (Max/Min) Gross 2.3kW / 1.3kW
Installation Inset or Free-Standing (using optional spacer)
Air Vent Required 100cm²
Safety Oxygen Depletion Sensor / Flame Failure Device / Catalytic Converter
Guarantee 3 Years

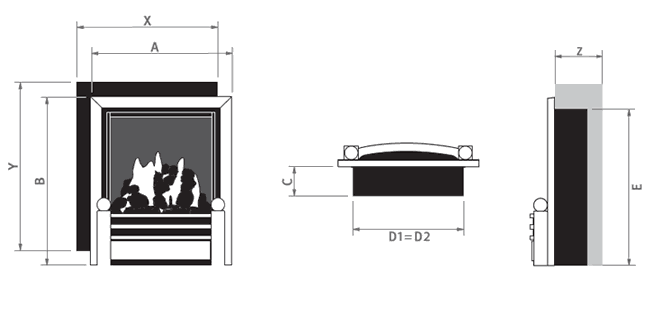

Eko Fires 5510 Inset Flueless Gas Fire Sizes

A B C D1 D2 E X Y Z
495mm
(19½")
620mm
(24½")
92mm*
(3¾")
405mm
(16")
405mm
(16")
555mm
(21¾")
410mm (16¼") Min
425mm (16¾") Max
555mm (21¾") Min
570mm (22½") Max
112mm*
(4½")

*The Eko 5510 flueless inset fire includes a 43mm spacer as standard making it suitable for installation into a 4" rebated fireplace surround against a flat wall. Optional 75mm spacer available for installation into a 3" rebated fireplace surround or 155mm spacer for free-standing against a flat wall or back panel.
