Fireline wood burning and multi-fuel stoves provide heating with patent pending advanced firebox combustion technology developed exclusively in their Telford laboratory, which results in their cleanest burning, most efficient stoves yet. Their combustion technology is developed to harness the unique Fireline designed air-wash as an integral part of the system and not just an add-on like older designs of stove.
The end result is a cleaner heat, cleaner home, cleaner flue and a cleaner, greener environment. They test, develop and evaluate performance at low air settings as well as high which ensures that their stoves perform with the very best. All but the smallest Fireline 4kW wood burning model have now achieved DEFRA exemption for burning logs in smokeless zones, something of a formality for them when clean burning is designed and developed into the products from conception.
The FX5W performance is the result of constant investment in research and development. Fireline only produce products using 100% British 3D CAD designs and exacting assembly standards. Materials are selected using quality cast iron, stainless steel, mild steel, ceramic glass and high- grade heat resistant coatings. Manufactured using the latest CNC laser profiling and press-brake technology together with seam welding and traditional iron founding techniques.
Wood burning using the Fireline FX5W high performance stove is not only environmentally responsible but the powerful heating effect combined with the warm ambience of the flame pictures from the very large air washed glass panels simply cannot be beaten.
The EcoDesign compliant FX5W provides the large looks of the 8kW wide screen stove but maintaining the nominal heat output at 5kW. This is achieved by a subtle reduction in depth of the grate area whilst the over-all 500mm width of the stove is the same as the larger 8kW model. This means that full 14.5" logs (375mm) can be accommodated on the standard multi fuel capable grate which incorporates a rotary riddle mechanism using well proven principles.
With a firebox lined with compressed vermiculite insulating board and Fireline’s own patent pending firebox air supply technology means that clean burning was assured from the beginning – CE and DEFRA compliance were a formality. 79% efficiency ensures top levels of fuel economy and the highly effective, proven Fireline air wash system gives fabulous views of the fire through the large glass panel.

Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)
Key features of the Fireline FX5W Wood Burning / Multi-Fuel Stove can be found below.
Model | FX5W |
Fuel | Wood & Solid Fuel |
Flue Location | Top or Rear |
Flue Diameter | 127mm (5") |
Finish | Matt Black |
Construction | Steel Body with Cast Iron Door |
Appliance Gross Weight | 79kg |
Efficiency - wood fuel/solid fuel | 79%/75.4% |
Declared nominal output | 5kW |
Max Log Length | 375mm (14½") |
Warranty | 7 Year Stove Body |

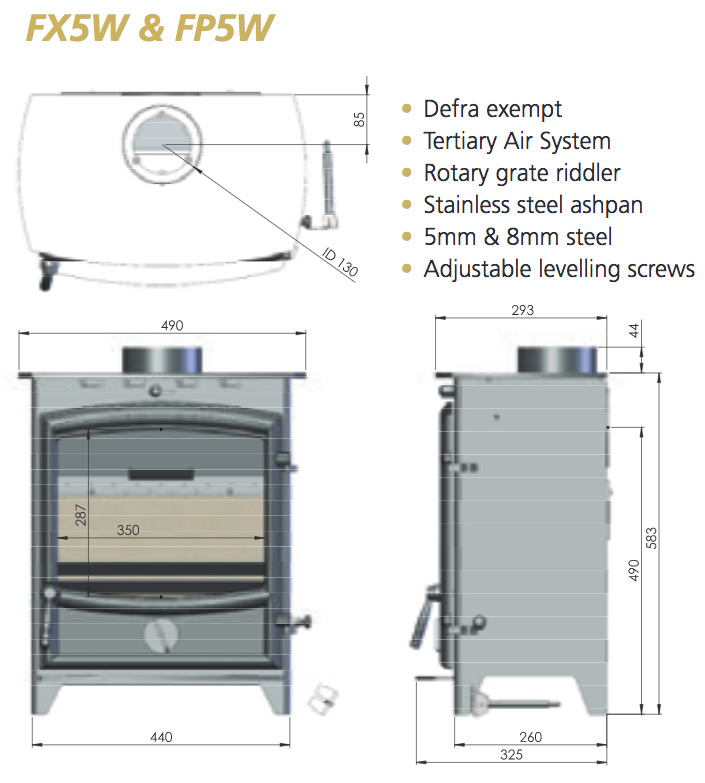

The dimensions (width, height, depth) of the Fireline FX5W Wood Burning / Multi-Fuel Stove are listed here.

All sizes in millimetres
