Constructed using high quality, twin layer cast iron, the Crystal 5 was the first model in the Ekol range and boasts the same clean burn technology as in their Clarity range. This 5kW model is ideal for standard room sizes and is simple to operate and very controllable.

Stove Glass:
Free Fitters Kit:
Ekol Stoves
Showroom Exclusive
(VAT incl.)

The Ekol Crystal 5 is a highly advanced stove with superb efficiency, ultra clean burning, simple to operate with robust, durable construction throughout and no delicate parts to go wrong. The smallest model in the range, the 5kW Crystal 5 is well suited to small to medium room sizes.

As a multi-fuel model as standard, you have the option of burning your preference of fuel - either logs or approved solid fuels. Benefiting from DEFRA approval, the Crystal 5 is fine for use in smoke controlled areas allowing you to enjoy the efficiency and ambience that only a real wood (or smokeless fuel) fire can bring.

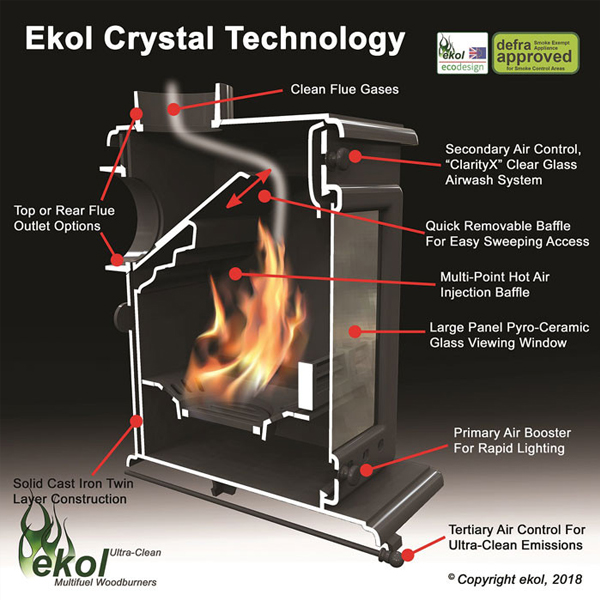

All Ekol Crystal stoves are hand made with traditional solid cast iron construction in the same way stoves have been made for the last 200 years, but using the latest technological advances in the firebox and airflow design.

Remarkable energy efficiency rating of 80.3% with heat output range from 2kW up to 5kW. Powerful Airwash system helps keep the glass window clear and you also have the option of upgrading to a stylish 'mirror' glass option that conceals the fire chamber when the stove is not in use but still offers the same, glorious view of the mesmerising flames when the fire is lit.

Top or rear (interchangeable) flue outlet designed for connection to a 125mm (5") flue pipe. Additional ventilation such as an air-vent is not normally required.

Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)


Fuel Wood & Approved Solid Fuels
Heat Output Range 2kW to 5kW
Efficiency 80.3%
Flue Diameter 125mm (5") - Top or Rear
Colour/Finish Matt Black
DEFRA Approval Yes
Maximum Log Length 250mm (10")
Approx Weight 67kg
Stove Body Warranty 5 Years

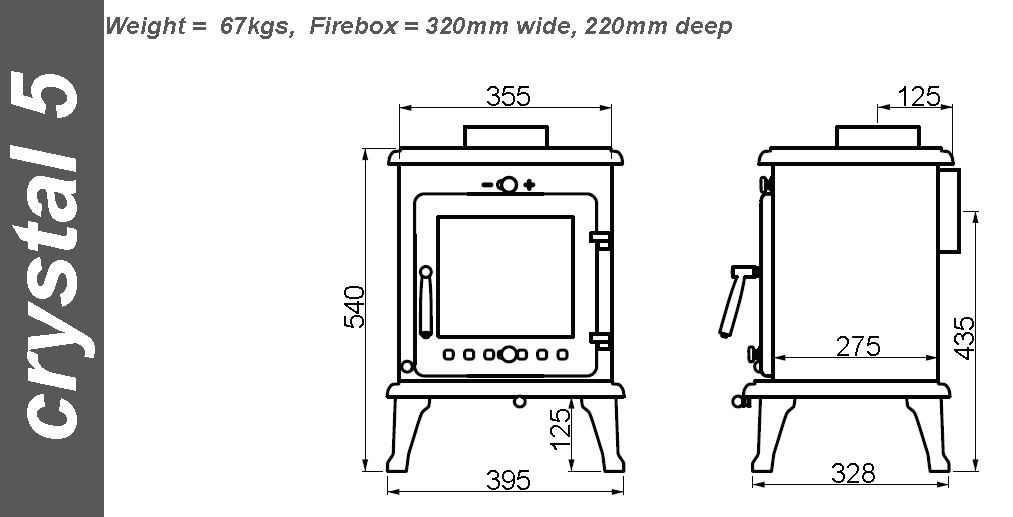

Ekol Crystal 5 Stove Sizes

Due to the size and weight of this model, the Ekol Crystal 5 Multi-Fuel Stove will be delivered to you on a palletised delivery service. All pallet deliveries are kerbside/front door delivery only, so please arrange adequate means to take your order into your home. Under normal circumstances this may take 2 people.

Current delivery times for the Ekol Crystal 5 is approximately 3-5 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
