Cast Tec Horizon 5 Wood Burning / Multi-Fuel Stove

Cast Tec Horizon 5 Wood Burning / Multi-Fuel Stove
Cast Tec Horizon 5 Wood Burning / Multi-Fuel StoveCast Tec Horizon 5 Wood Burning / Multi-Fuel StoveCast Tec Horizon 5 Wood Burning / Multi-Fuel Stove

An attractive new model from Cast Tec featuring a stylish door design with large viewing window. The Horizon 5 boasts easy to operate controls allowing you burn seasoned wood or HETAS approved smokeless fuels efficiently whilst also being passed for use in smokeless areas.

Log Store Base:
Free Fitters Kit:
Cast Tec
Showroom Exclusive
(VAT incl.)

Stylish design which will compliment both classical and contemporary settings with innovative features to help with efficiency and performance. The Cast Tec Horizon 5 will appeal to both seasoned stove experts and those looking into wood burning for the first time.

Benefiting from 'Triple Burn Technology', you can be assured that all the fuel burnt produces the maximum heat and efficiency. The triple burn process is Primary Air (lever on bottom of door), Secondary Air Wash (lever above door) and Tertiary Air (air inlets in the rear of the stove) which mixes pre-heated air with exhaust gases allowing the exhaust gas to re-ignite producing a cleaner and more efficient stove.

Capable of burning seasoned or kiln dried wood or for those who prefer longer refill periods, the Horizon 5 can also be used to burn HETAS approved smokeless fuels. A riddling rod on the side of the stove assists ashes to fall through the grate inside.

This attractive stove has a nominal heat output rating of 4.9kW so additional ventilation in the room (air-vent) is not needed in most circumstances. It is the ideal output for small to medium rooms and will provide plenty of warmth during the colder months.

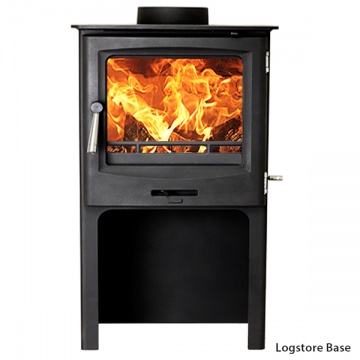

Steel construction with cast iron door finished in matt black paint with contrasting stainless steel handle and riddling tool. Standard Horizon 5 multi-fuel stove has legs for installation into fireplace chambers. Optional Logstore Base model available which raised the fire chamber to a higher level and provides a convenient area to store extra fuel.

The Horizon 5 requires installation into a Class 1 flue (real chimney) or dedicated 5" flue system. It has an interchangeable top or rear flue outlet.

Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)

Fuel Wood & Smokeless Fuel
Nominal Heat Output 4.9kW
Efficiency 75%
Weight 59kg
Flue Diameter 125mm (5")
Flue Location Top or Rear
Construction Mild Steel & Cast Iron
Finish Matt Black
Warranty 5 Year Stove Body

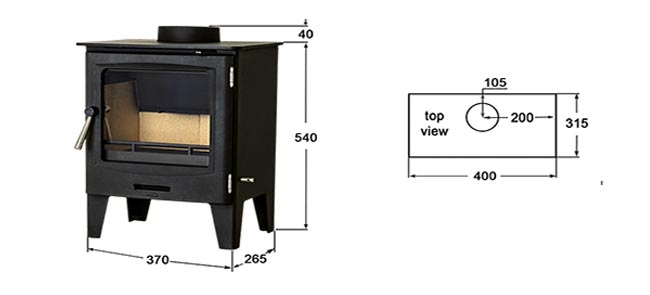

Cast Tec Horizon 5 Stove Dimensions

Due to the size and weight of the Cast Tec Horizon 5, it will be delivered to you on a palletised delivery service. All pallet deliveries are kerbside/front door delivery only, so please arrange adequate means to take your order into your home. Under normal circumstances this may take 2 people.

Current delivery times for the Horizon 5 is approximately 5-7 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
