Cast Tec Regal Integra Cast Iron Fireplace Insert

Cast Tec Regal Integra Cast Iron Fireplace Insert
 Cast Tec Regal Integra Cast Iron Fireplace InsertCast Tec Regal Integra Cast Iron Fireplace Insert

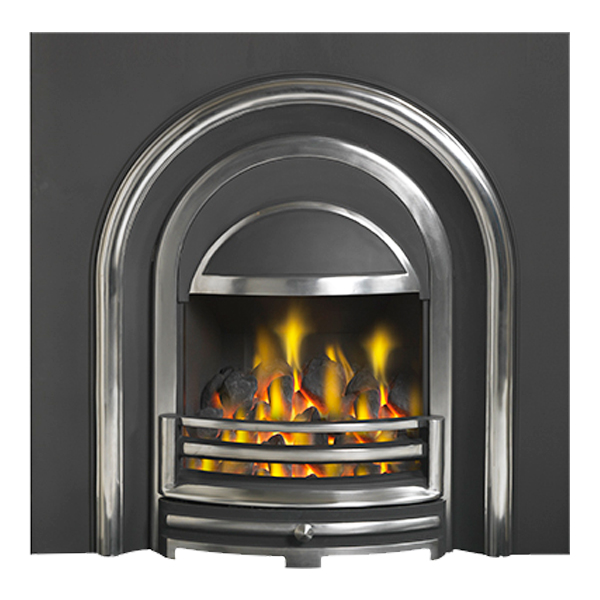

The Regal Integra is a plain arched insert in matt black with the inner and outer bands polished along with the canopy rim and fire front. This stylish insert combines traditional cast iron construction with the latest developments in technology to allow you to add a highly advanced fire.

Integra Fire:
Cast Tec
Showroom Exclusive
(VAT incl.)

Whilst based on traditional Victorian fireplace designs, the Cast Tec Regal Integra insert is designed to be combined with a large range of highly advanced, dedicated fires. These include a glass-fronted gas fire boasting the ultimate in high efficiency, balanced flue and powerflue gas fires for properties without a chimney or flue and a realistic electric fire which can be fitted within a fireplace on a flat wall.

The Regal Integra is constructed using cast iron and painted matt black. The raised sections of the outer and inner band plus the detailing around the fire area are then polished to reveal a stylish satin silver finish. The matt black areas make the Regal Integra a popular insert to combine with lighter fireplace surrounds whist the silver areas make it attractive even when the fire is not in use.

Integra Fire Options

Integra 'HO' (High Output) - Total depth of 195mm, this open-fronted gas fire has a maximum heat output of 3.9kW with efficiency of up to 55%. Available in manual control with adjustment to the fire made by turning the discreetly located controls at the bottom of the fire behind the insert ashpan cover. A slide control option allows for full operation of the fire using a lever at the top, right-hand side of the fire or a remote control option is available allowing for armchair operation.

Convector Plus - Capable of providing a superb maximum heat output of up to 4.6kW, this innovative, open-fronted gas fire features the very latest technology and also boasts improved efficiency of up to 67%. Total depth of 195mm with Manual, Slide or Remote control versions offered.

Classic Multiflue - Designed especially for installations into Class 2 flues with a slimline depth of only 120mm. 3.3kW maximum heat output with an efficiency rating of 50%. This open-fronted gas fire is only available as with manual controls.

Integra HE (High Efficiency) - For those looking for the lowest running costs, the Integra HE is a glass-fronted gas fire boasting fantastic high efficiency of 83%. Available in manual, slide or remote control, it has a maximum heat output of 3.8kW with a total depth of 195mm.

Integra Balanced Flue - A glass-fronted gas fire suitable for installation in homes without a chimney or flue. When fitted on an external wall, the Integra Balanced Flue has a pipe attached to the back of the fire which allows the fumes to be expelled horizontally through the wall. Appliance depth of 193mm with a maximum heat output of 3.8kW.

Integra Power Flue - The same principle as the balance flue fire above. Designed for homes without a flue for installation on an external wall. Due to having an electronically driven fan unit on the outside wall, this fire is open-fronted and has a maximum heat output of 3.9kW. Total depth of appliance is 195mm.

Integra Solid Fuel Box - Glass-fronted, inset multi-fuel stove which is DEFRA exempt and allows you to burn wood logs or smokeless fuels even if you are located in a smoke control area. Nominal heat output of 5kW with efficiency rating of 78%. Total depth of this inset stove is 270mm and it would require a Class 1 flue (real chimney).

Integra Electra Electric Fire - Dedicated Integra Electra electric fire has a realistic flame effect and produces up to 2kW in fan-assisted heat if required, however, in the summer months you may opt for the attractive flame effect only. Electra controls are manual and cleverly positioned just behind the cast-iron canopy so that they are not too prominent but can be accessed without too much bending over. An ON switch will display the flame effect only and an additional two switches allow a 1kw or 2kw heat output. This fire can be housed inside a standard 100mm (4”) rebated mantel, which means that the complete fireplace can be installed against any suitable flat wall with only the skirting to remove.

Integra Ecoflame Electric Fire - With the benefit of being suitable for installation against a flat wall when combined with a fireplace surround which has a 75mm (3") rebate. Capable of providing up to 2kW of heat plus a flame only setting for use during the summer months. LED flame lighting for reduced running costs.



Material Cast Iron
Finish Matt Black Paint with polished detail
Overall Size 944mm wide x 941mm high
Fireplace Compatibility Any fireplace surround subject to internal leg dimensions being able to accommodate above sizes
Warranty 1 Year

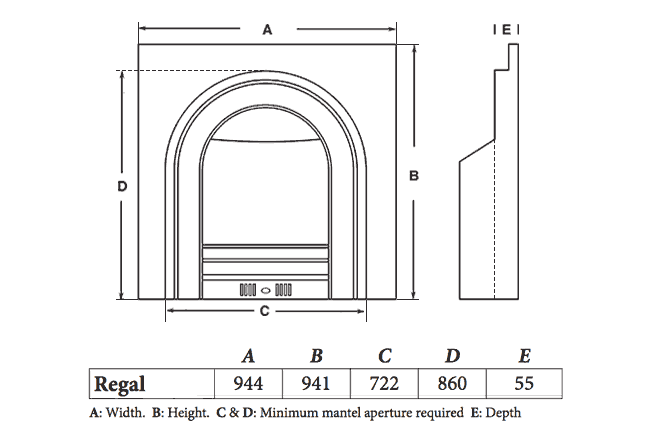

Cast Tec Regal Integra Sizes

Due to the size and weight of this fireplace, the Cast Tec Regal Integra Insert will be delivered to you on a palletised delivery service. All pallet deliveries are kerbside/front door delivery only, so please arrange adequate means to take your order into your home. Under normal circumstances this may take 2 people.

Current delivery times for the Regal Integra is approximately 7-10 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
